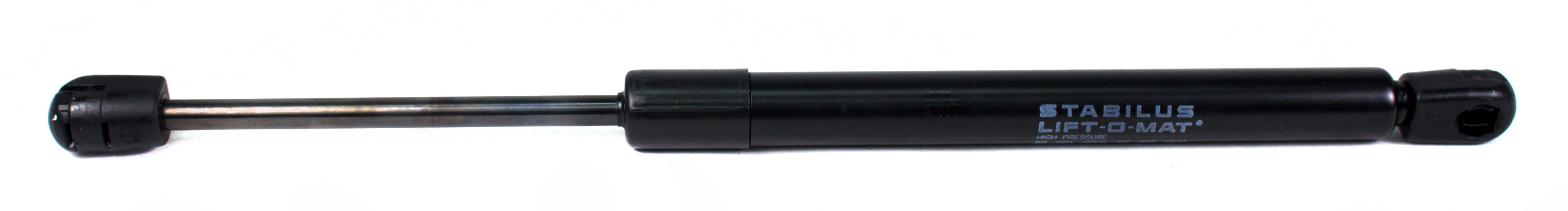

Stabilus Replacement Lift Support Fits 2000-2005 Ford Excursion Models 5B249795

Stabilus Lift Support Lift Support; Hatch; Lift-O-Mat by Stabilus. Precision Control with Dynamic Damping. The Lift-O-Mat by Stabilus sets a new standard in controlled motion, featuring dynamic damping technology for refined, adaptable performance. Instead of relying on an oil column, this advanced lift support utilizes a longitudinal groove-known as a velocity manifold-pressed into the tube wall, allowing gas to flow around the piston. The groove depth and geometry control extension speed and are highly tunable to meet the specific requirements of any application. Innovative Lift Assist An internal compression spring is integrated within the tube to assist in lifting the application off the latch mechanism when released, providing enhanced convenience and performance. Designed for Smooth Operation The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, the Lift-O-Mat offers OE performance and design, making it an ideal choice across industries requiring precision control, from automotive to ergonomic equipment and beyond. Why Choose Lift-O-Mat?. Dynamic Damping: Continuous gas flow around the piston, controlled by a custom groove, allows precision-tuned extension. Innovative Lift Assist: An internal compression spring helps lift the application off the latch for improved usability. Highly Tunable: Groove depth and geometry can be tailored to achieve optimal performance for each application. Built to Last: High-quality materials and expert engineering ensure reliability and durability. For best results replace in pairs Easy to install and require no special tools Internal mechanical spring compresses in the closed position to give an added boost during initial opening Dynamic damping speed control creates a fluid opening motion. No bouncing or jerking Type: Gas Hardware Included: No Compressed Length (mm): 242mm Extended Length (mm): 354mm Lower Mount Type: Socket Upper Mount Type: Socket Compressed Length (in): 9-1/2 Inch Rod Diameter (in): 5/16 Inch Tube Diameter (in): 3/4 Inch Pounds Of Force (Lbs): 136 Lbs. Travel Length (in): 4-7/16 Inch Tube Diameter (mm): 19mm Travel Length (mm): 113mm Rod Diameter (mm): 8mm Extended Length (in): 13-15/16 Inch Ford: Excursion Eddie Bauer V10 - 6.8L 2003 - 2005 Excursion Eddie Bauer V8 - 5.4L 2003 - 2005 Excursion Eddie Bauer V8 - 6.0L 2003 - 2005 Excursion Eddie Bauer V8 - 7.3L 2003 Excursion Limited V10 - 6.8L 2000 - 2005 Excursion Limited V8 - 5.4L 2000 - 2005 Excursion Limited V8 - 6.0L 2003 - 2005 Excursion Limited V8 - 7.3L 2000 - 2003 Excursion XLS V10 - 6.8L 2004 - 2005 Excursion XLS V8 - 5.4L 2004 - 2005 Excursion XLS V8 - 6.0L 2004 - 2005 Excursion XLT V10 - 6.8L 2000 - 2005 Excursion XLT V8 - 5.4L 2000 - 2005 Excursion XLT V8 - 6.0L 2003 - 2005 Excursion XLT V8 - 7.3L 2000 - 2003 - Brand New Item - Part Number: 5B249795 90 Day Warranty Included! ----------------------------------------------------- 1 Factory Radio is proud to introduce our line of liquidation listings! These are new items that are priced to move. Any cosmetic blemishes are noted in the condition field so please keep that in mind when purchasing. All items are guaranteed to be in 100% working order with our standard 30 day return and 90 day warranty so you’ll still be covered by our top-notch customer service. We’ll be adding new listings to this line every day at limited quantities so be sure to bookmark and keep watch for more great deals! ----------------------------------------------------- This is a Stabilus Lift Support that fits the vehicles listed above. This item is in NEW condition, with all items included unless otherwise listed. Please see the photos for details. As you can see from our reviews, we package and ship everything very carefully. If you have any questions about any item listed, please do not hesitate to reach out. Thank You for Your Purchase!
