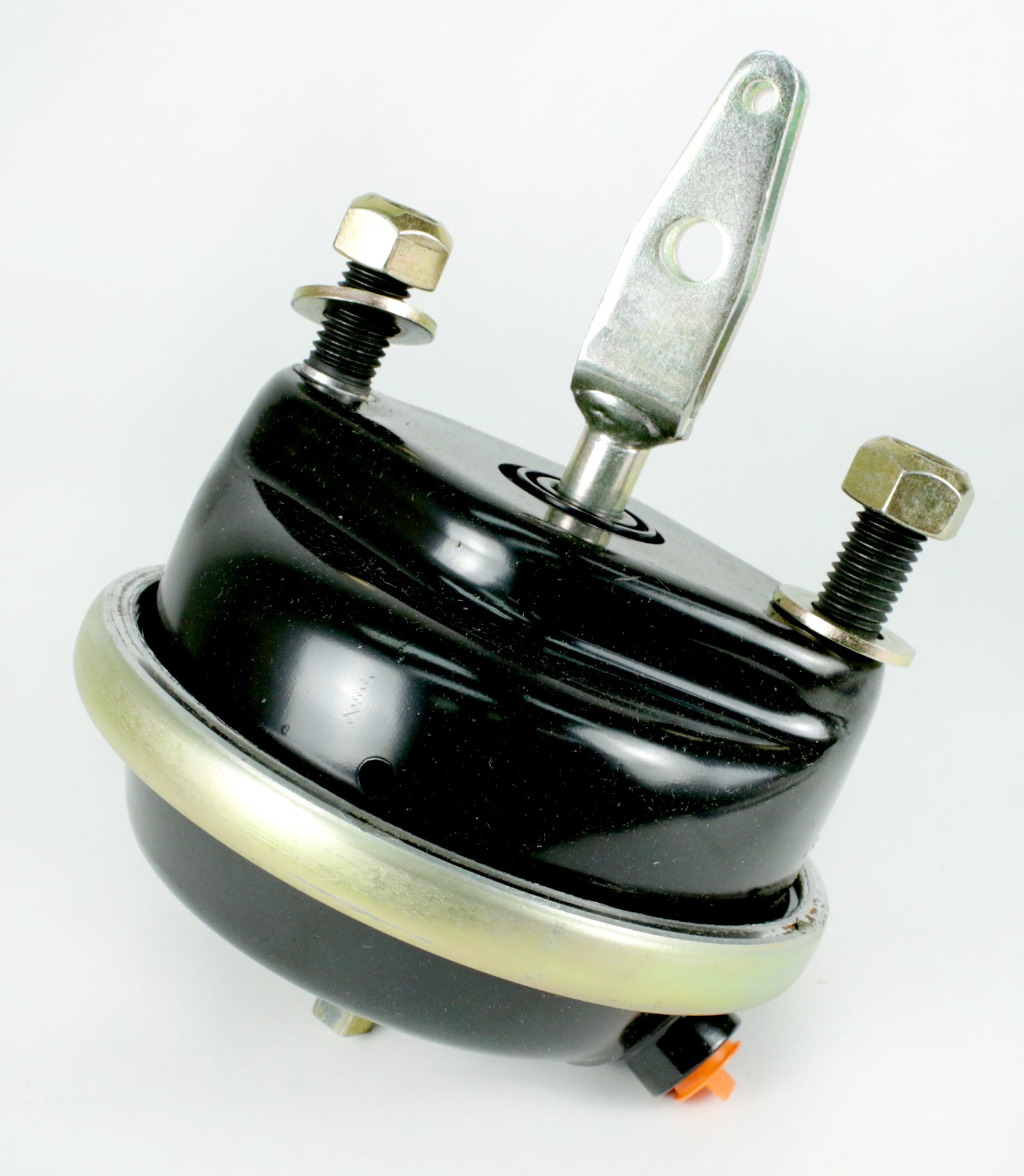

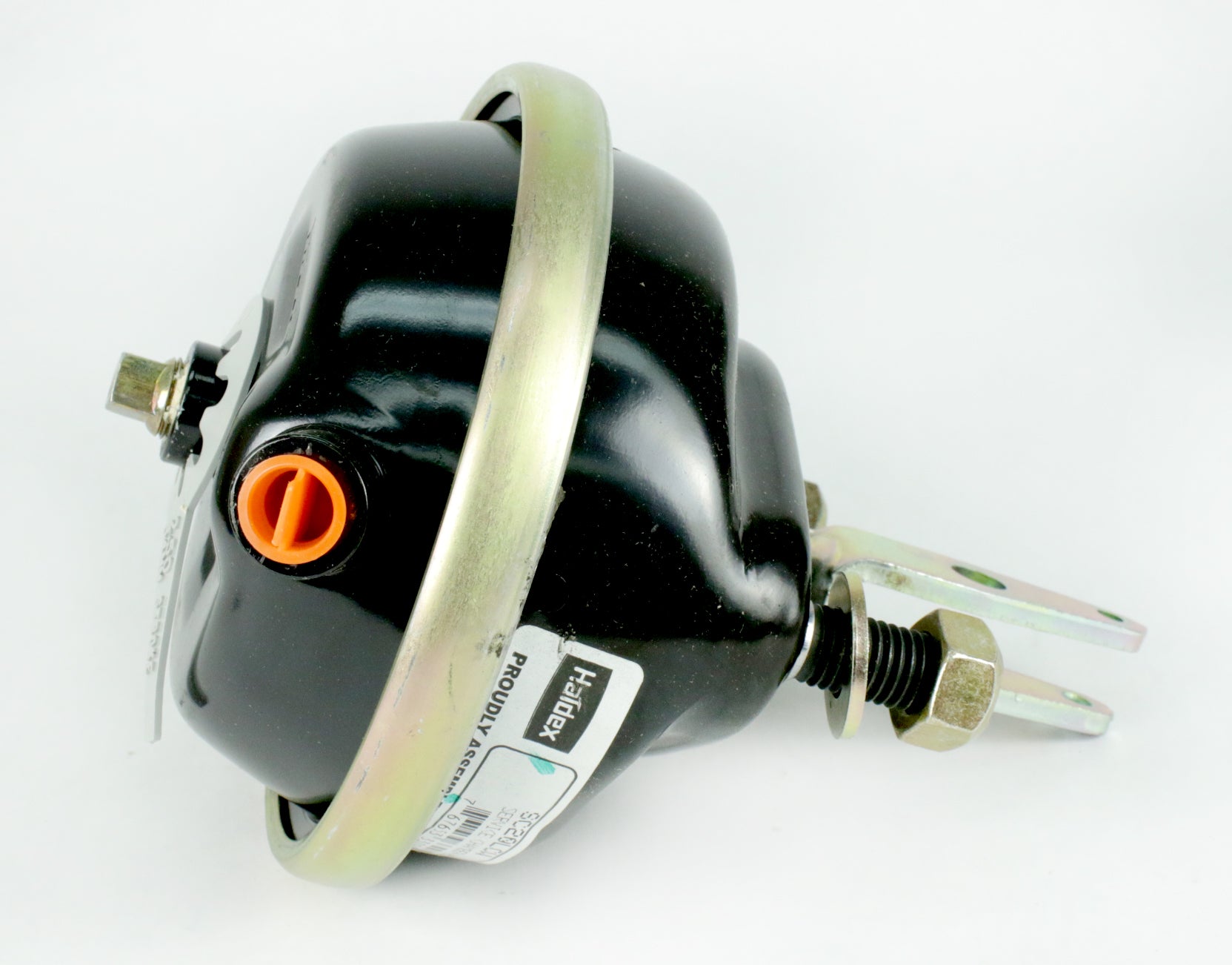

Haldex Air Brake Service Chamber Welded 2-Hole Clevis 2.5" Stroke Length SC20LCW

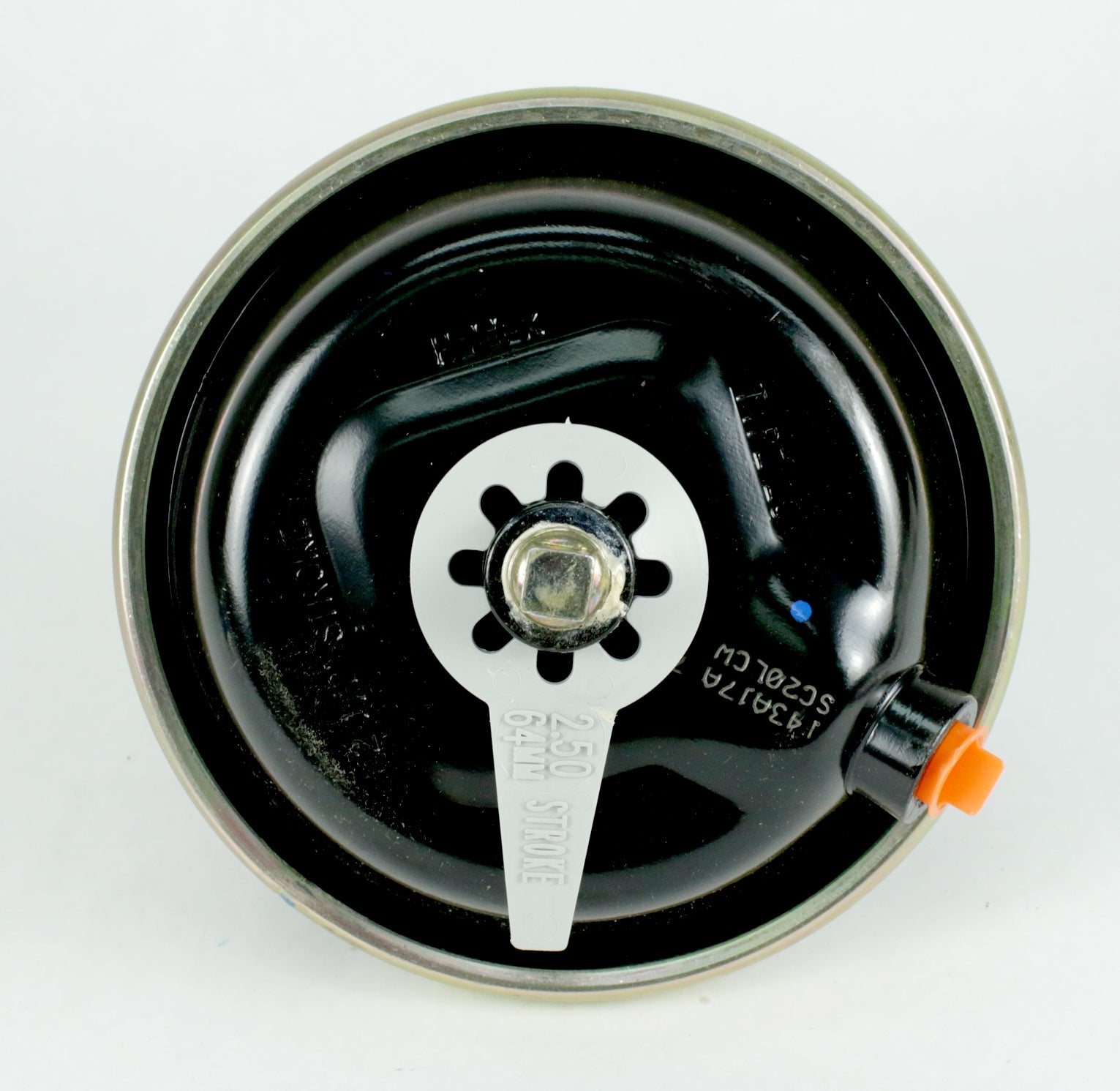

Haldex T20 Air Brake Service Chamber Welded 2-Hole Clevis // 2.5in Stroke Length Keep the air brake system on your medium and heavy duty trucks, trailers, and off-highway vehicles working at its peak performance with a high-quality Haldex air brake chamber. This T20 service chamber is specially designed to resist extreme temperatures and can fit most drum brake applications. Features: * Has powder-coated steel pressure housing with resistance welded air ports for long-term durability * Steel Pressure Housing and powder coated with resistance welded air ports for durability * World Class Diaphragm from high quality rubber compound that is resistant to heat and cold, superior flexibility even at 40°F * With sturdy powder-coated service housing that can withstand corrosion * Orange Alert® Stroke Indicator effectively informs the user if brake maintenance is required * Self-piloting dust shield extends air brake system lifespan Specifications: Diaphragm Type: Single Ram Stroke: 2.5 in. Air Port Thread Diameter: 3/8-18 NPTF Air Port Position: 0° Bracket to End of Spring Housing Length: 4.2 in. Clevis Pin Length: 2.25 in. Freight Class: 70 Maximum Pressure: 150 PSI Push Rod Length: 1 in. Service Clampband Size: 6.8 in. Stud Distance: 4.75 in. Part Interchange: ANCHORLOK: 127200010, 127200011, 127200016, 127200215, 127200216, 127200217, 127200218, 127200220, SC20LCW AUTOMANN: 179SC20LW225 Bendix: K058311, K058715 Daimler: HDX127200215, HDX127200216, HDX127200217, HDX127200218 Daimler Truck North America: HDX127200215, HDX127200216, HDX127200217, HDX127200218 Freightliner: HDX127200010, HDX127200011, HDX127200215, HDX127200216, HDX127200217, HDX127200218 Haldex: S127200010, S127200011, S127200215, S127200216, S127200217, S127200218, S127200220 MERITOR: B253276T20 MGM Brakes: 1621013, 1621901 Mack: 19QE4133 Navistar: 2602424C91, 3679383C91, 3682304C91, S127200010, S127200011 RYDER FLEET PROD.: U55 SC20LCW Ryder: U55 SC20LCW Volvo: 24424191, 85125543 - Brand New Item - Part Number: SC20LCW 90 Day Warranty Included! ----------------------------------------------------- 1 Factory Radio is proud to introduce our line of liquidation listings! These are new items that are priced to move. Any cosmetic blemishes are noted in the condition field so please keep that in mind when purchasing. All items are guaranteed to be in 100% working order with our standard 30 day return and 90 day warranty so you’ll still be covered by our top-notch customer service. We’ll be adding new listings to this line every day at limited quantities so be sure to bookmark and keep watch for more great deals! ----------------------------------------------------- This is a Haldex Type 20 Long Stroke Service Brake Chamber. This item is in NEW condition, with all items included unless otherwise listed. Please see photos for details. As you can see from our reviews, we package and ship everything very carefully. If you have any questions about any item listed, please do not hesitate to reach out. Thank You for Your Purchase!
