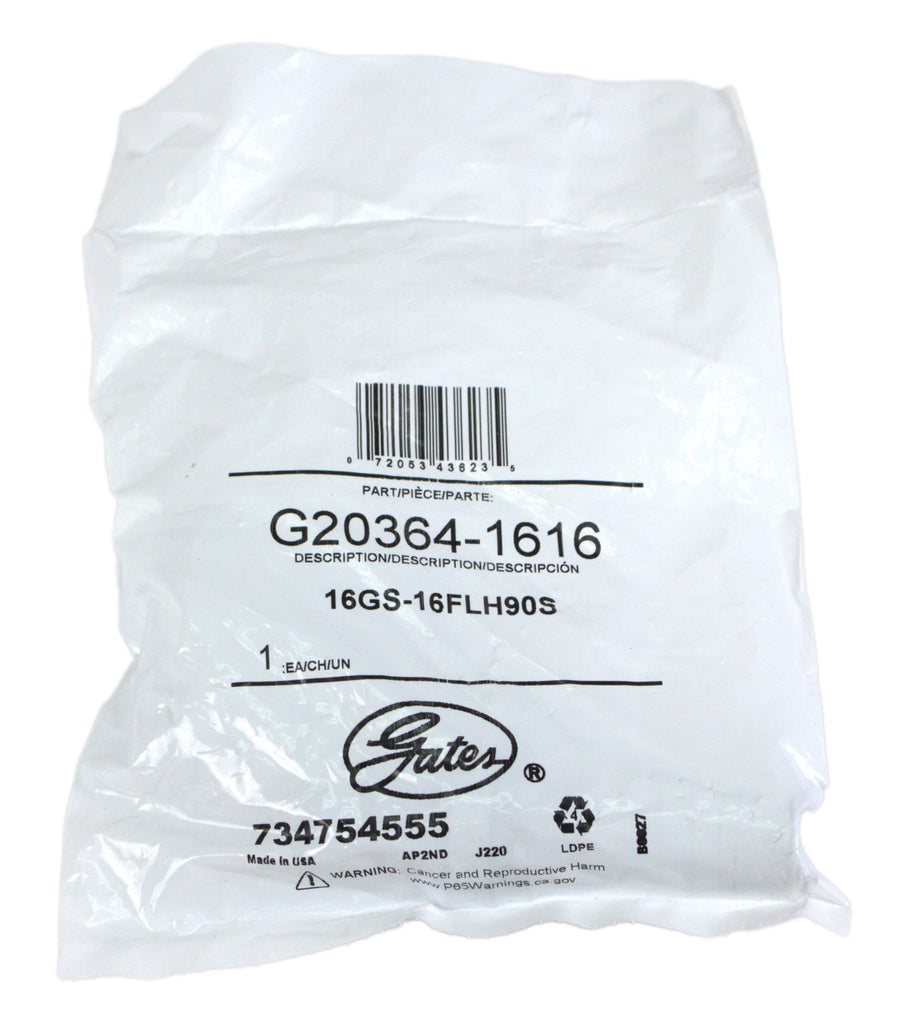

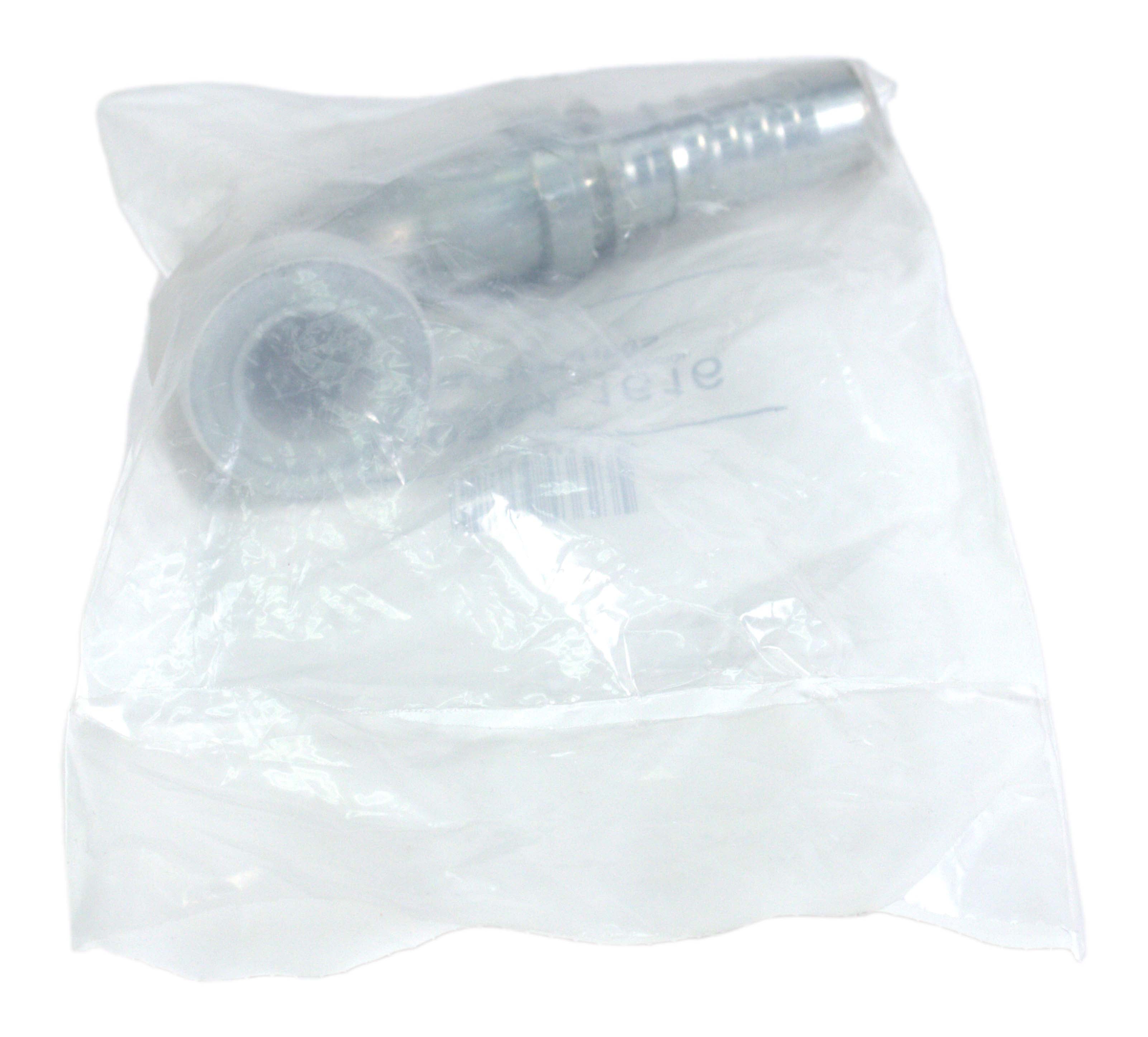

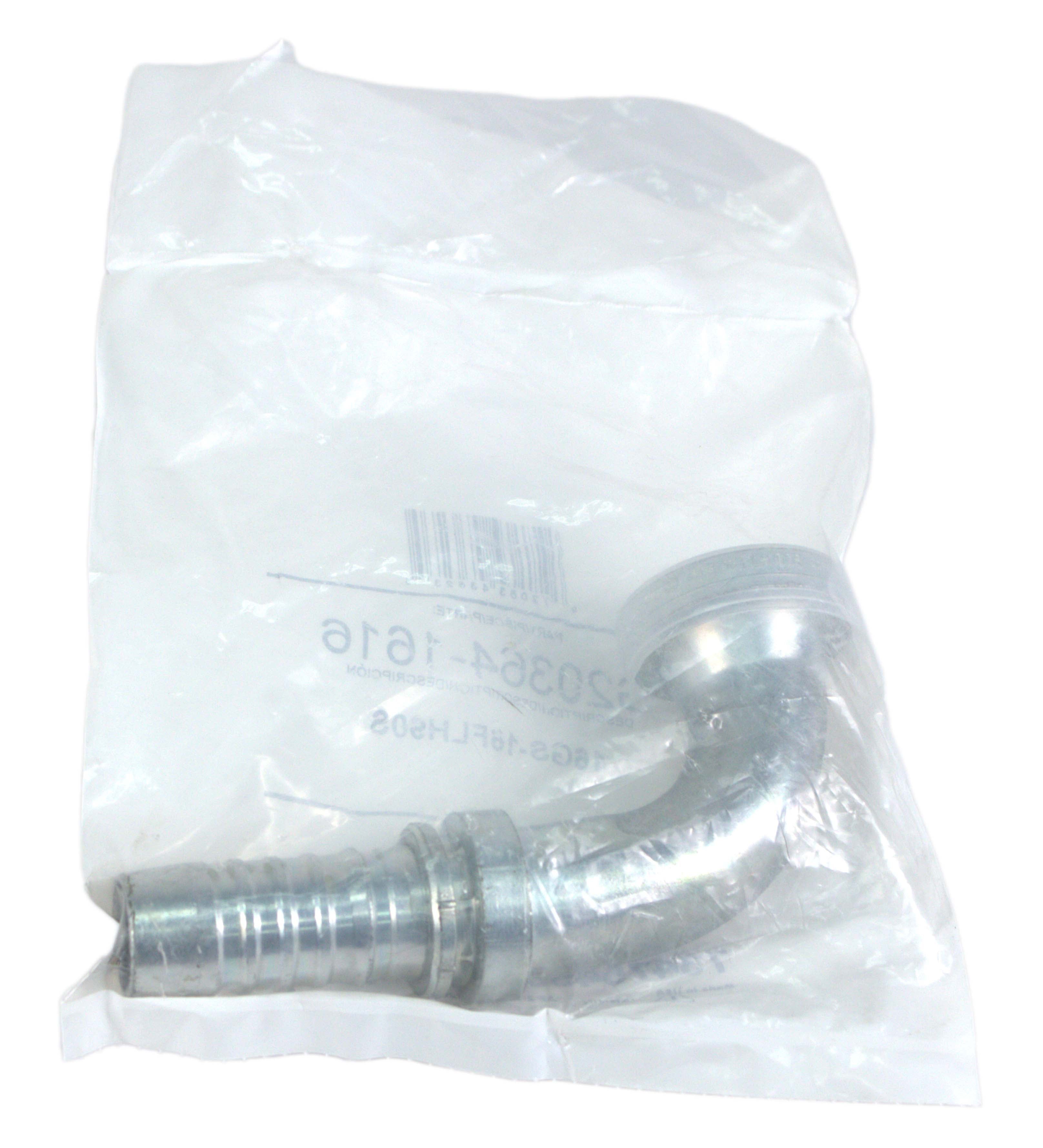

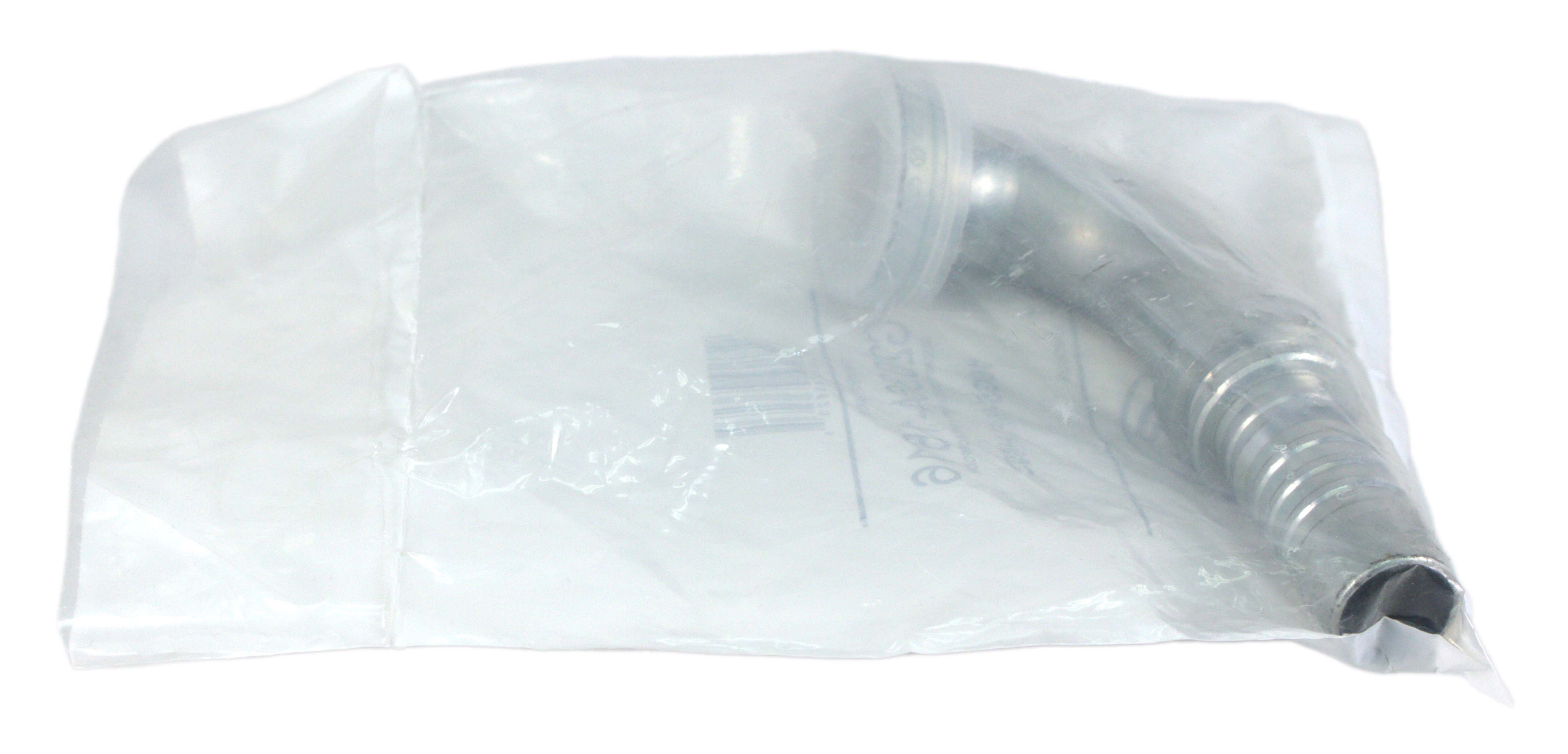

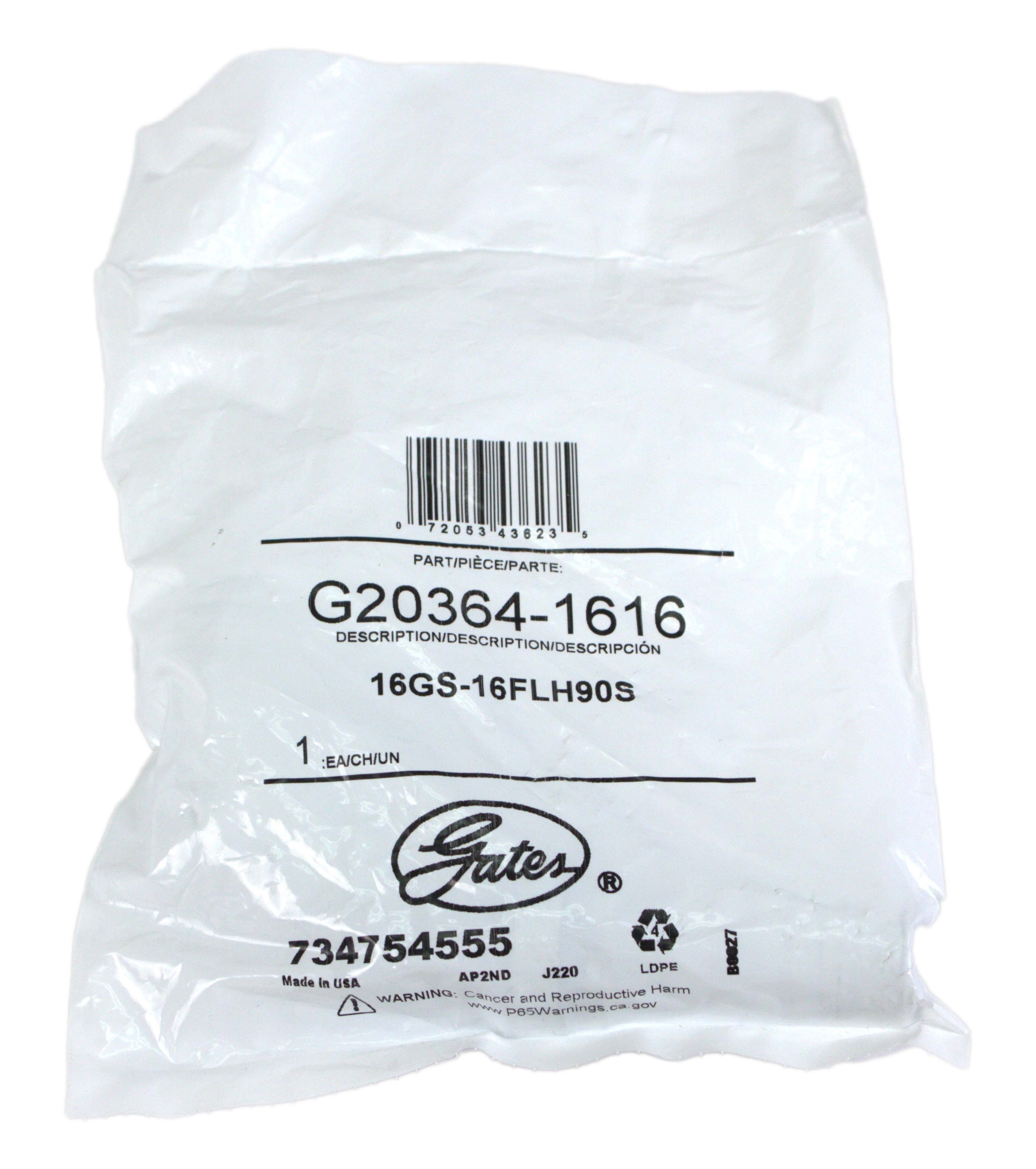

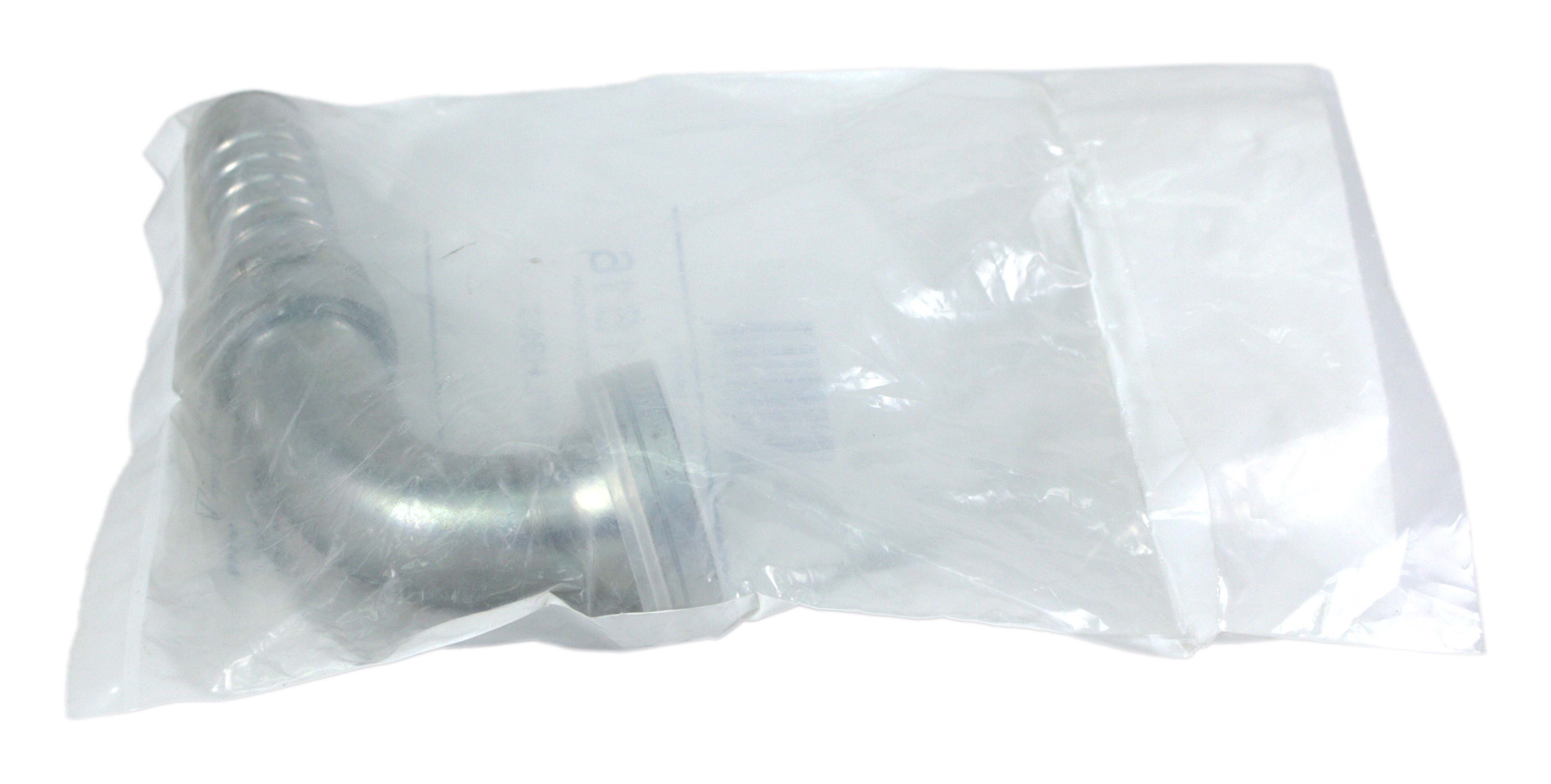

Gates Hydraulic Coupling Code 62 Heavy O-Ring Flange 90 Bent Part ID G20364-1616

Gates Hydraulic Coupling Heavy O-Ring Flange Code 62 90 Bent Tube Hydraulic Coupling; Code 62 Heavy O-Ring Flange; 90 Bent Tube; GlobalSpiral; GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSYS four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. -8FL, -12FL, -16FL maximum working pressure is 5000 psi; -20FL maximum working pressure is 4000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only Features: "Bite-the-wire" crimp for improved coupling retention Tested to an industry-leading 1,000,000 impulse cycles +250 Degree Fahrenheit temperature capability for longer assembly life Environmentally-friendly Tuffcoat plating for 347 percent better corrosion resistance than the SAE Standard Specifications: Cross reference: G203641616, GATG20365-1616, GATG20366-1616, TEXF4-1616-FLH90 UPC: 072053436235 Hose Inside Diameter: 1" (16) Working Pressure Rating: 6000 (PSI) Bend Angle: 90° Series Stem Style: GlobalSpiral Couplings Stem Size: 1" (16) Swivel: No Thread Configuration: Code 62 O-Ring Flange Heavy 90° Bent Tube Short (FLH90S) Thread Size: 1" (16) Fitment: For extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. - Brand New Item - Part Number: G20364-1616 90 Day Warranty Included! ----------------------------------------------------- 1 Factory Radio is proud to introduce our line of liquidation listings! These are new items that are priced to move. Any cosmetic blemishes are noted in the condition field so please keep that in mind when purchasing. All items are guaranteed to be in 100% working order with our standard 30 day return and 90 day warranty so you’ll still be covered by our top-notch customer service. We’ll be adding new listings to this line every day at limited quantities so be sure to bookmark and keep watch for more great deals! ----------------------------------------------------- This is a Gates Hydraulic Coupling Code 62 Heavy O-Ring Flange 90 Bent Tube. This item is in NEW condition, with all items included unless otherwise listed. Please see photos for details. As you can see from our reviews, we package and ship everything very carefully. If you have any questions about any item listed, please do not hesitate to reach out. Thank You for Your Purchase!
