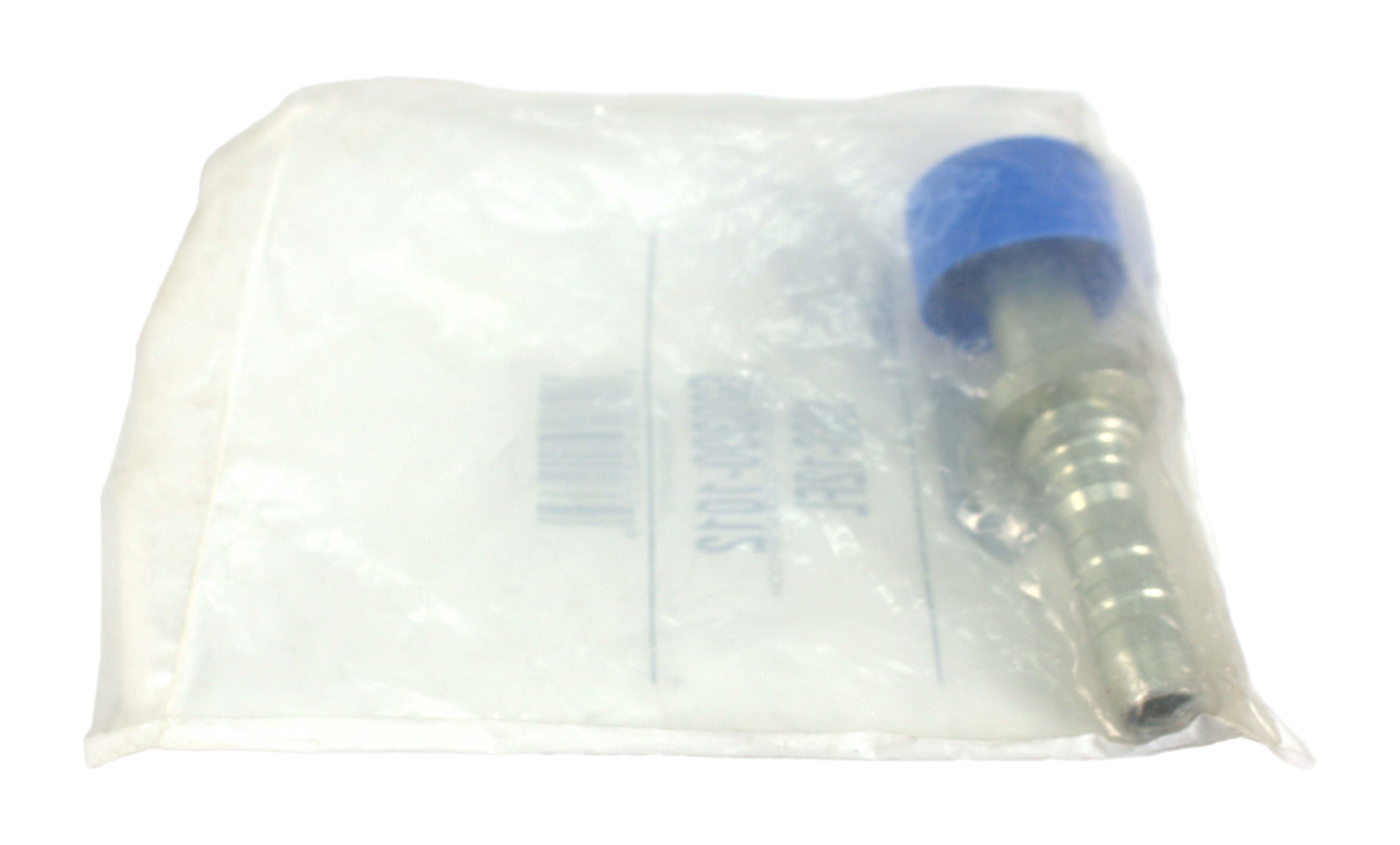

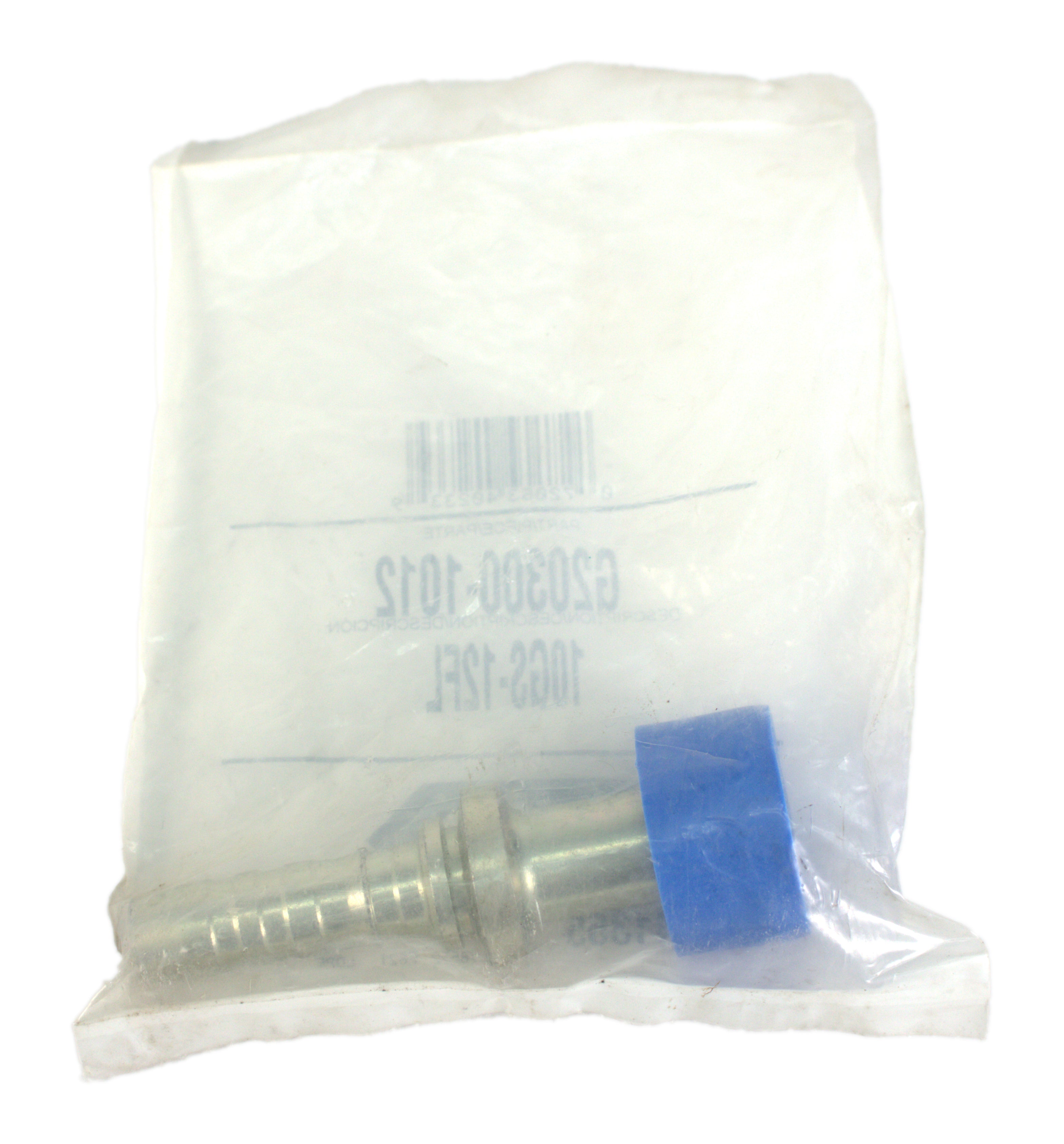

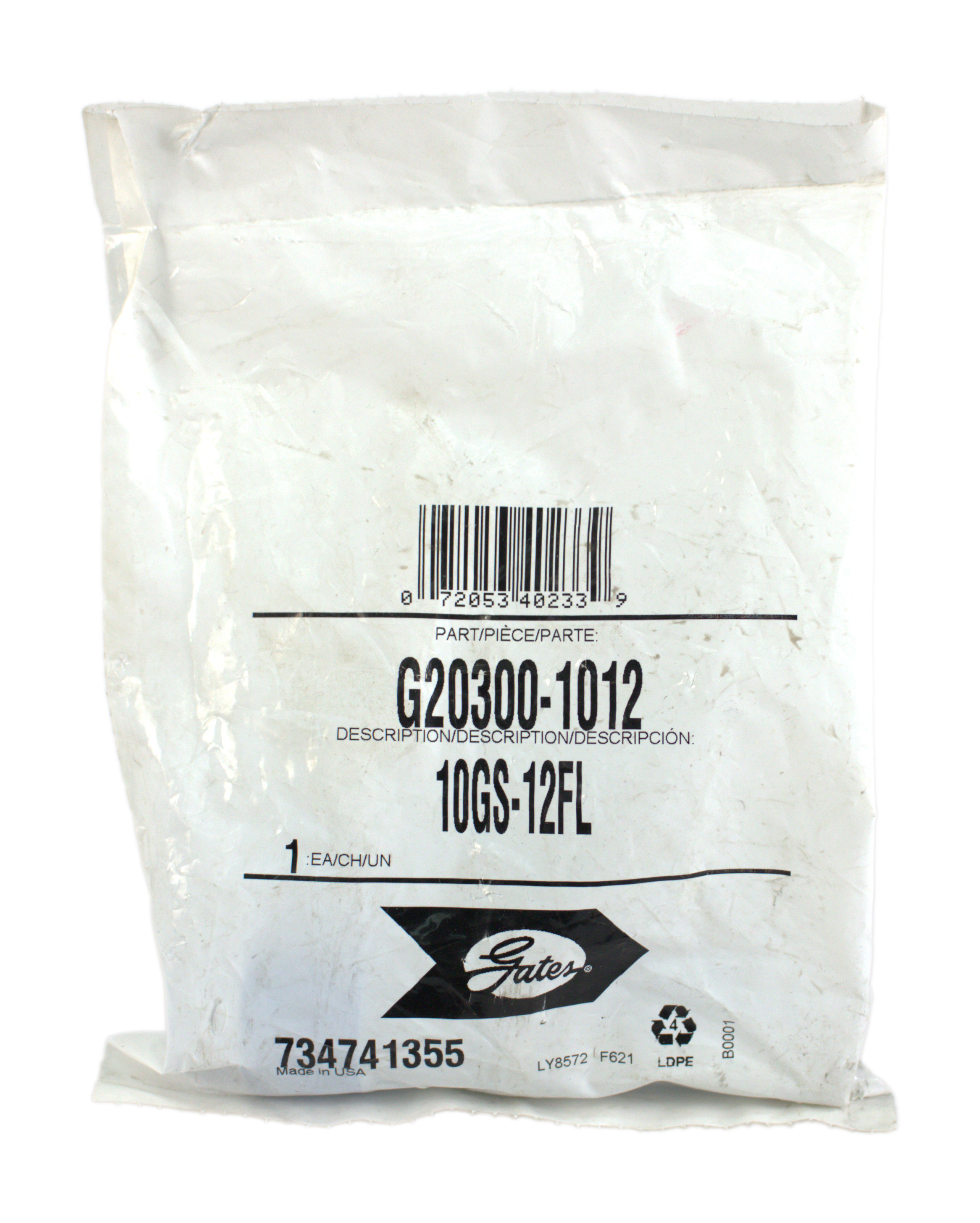

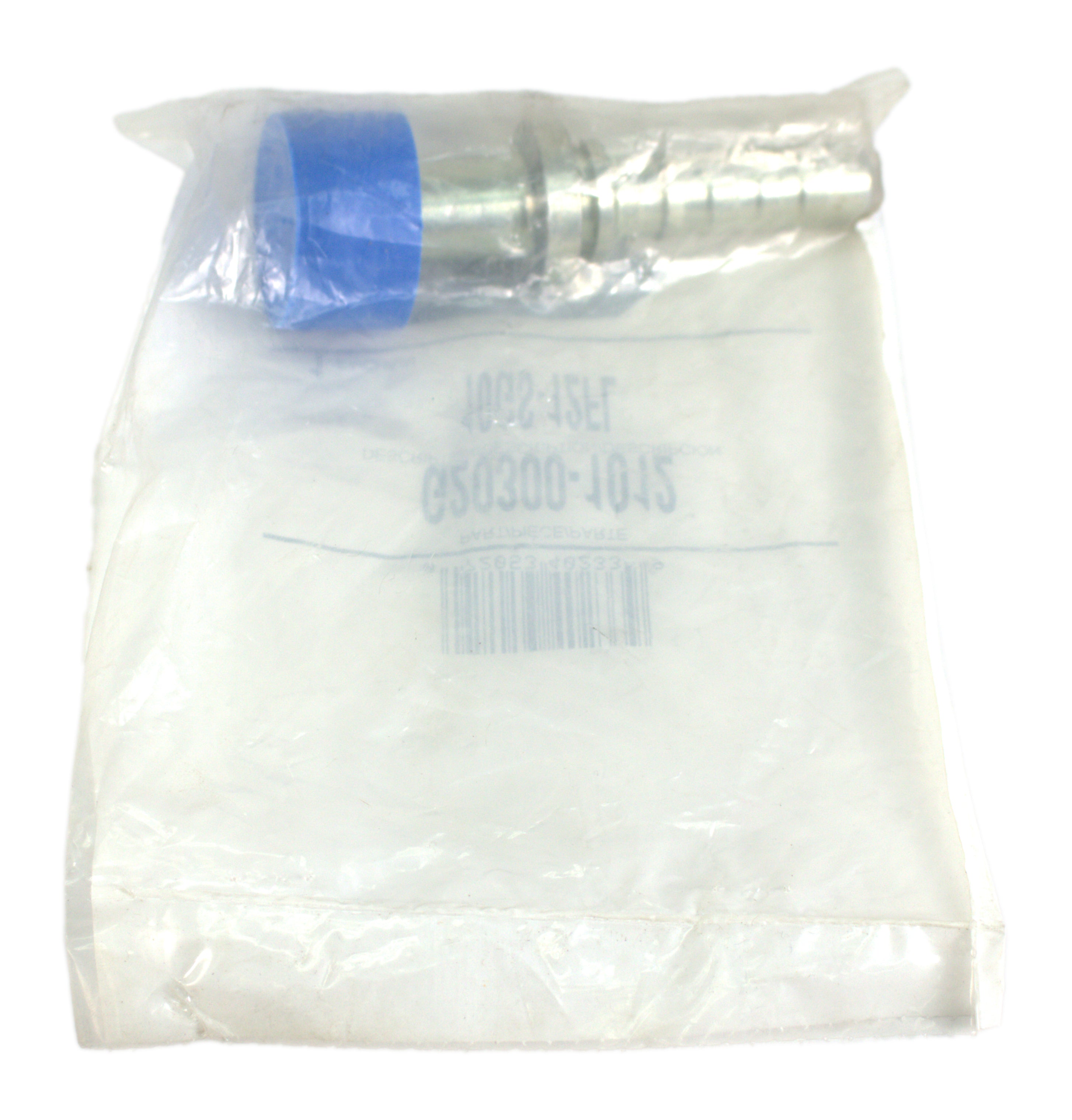

Gates GlobalSpiral Code 61 O-Ring Flange Coupling 5000 Max PSI Model G20300-1012

Gates GlobalSpiral Code 61 O-Ring Flange Coupling Gates GlobalSpiral no-skive coupling design provides superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Features: Bite-the-wire crimping for better tip retention Tested to an industry-leading 1,000,000 impulse cycles Temperature Capacity +250 F Deg, for longer assembly life Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard GlobalSpiral couplings have been tested to industry-leading one million impulse cycles at +250 Deg F (+121 Deg C) without causing stress cracks in the hose tubing. Machined from unleaded steel bar stock, GlobalSpiral thread ends are able to handle working pressures up to 6,000 psi. Coated with TuffCoat plating - more than five times better corrosion resistance than SAE ASTMB117 specification. Specifications: Coupling Description: GlobalSpiral Code 61 O-Ring Flange Industrial Description: 10GS-12FL Inside Diameter: .625 IN Hydraulic Hose Recommendation: All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi Maximum Working Pressure: 5000 PS Flange Thickness: .27 in Flange Diameter: 1.5 IN Cut-Off Length: 2.31 IN Length: 4.29 IN Inside Diameter: 15.9 MM Flange Thickness: 6.9 MM Flange Diameter: 38.1 MM Cut-Off Length: 58.7 MM Length: 109 MM Part Interchanges: Aeroquip 1B12FL10 Parker 11571-12-10 Dayco 100085 Weatherhead 43010UG12 Goodyear 28320-1012 Goodyear 29320-1012 Goodyear S4-FL-1012 NAPA G20300-1012 California Proposition 65 Warning California residents see Prop 65 Warning(s) Fitment: All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi - Brand New Item - Part Number: G20300-1012 90 Day Warranty Included! ----------------------------------------------------- 1 Factory Radio is proud to introduce our line of liquidation listings! These are new items that are priced to move. Any cosmetic blemishes are noted in the condition field so please keep that in mind when purchasing. All items are guaranteed to be in 100% working order with our standard 30 day return and 90 day warranty so you’ll still be covered by our top-notch customer service. We’ll be adding new listings to this line every day at limited quantities so be sure to bookmark and keep watch for more great deals! ----------------------------------------------------- This is a Gates GlobalSpiral Code 61 O-Ring Flange. This item is in NEW condition, with all items included unless otherwise listed. Please see photos for details. As you can see from our reviews, we package and ship everything very carefully. If you have any questions about any item listed, please do not hesitate to reach out. Thank You for Your Purchase!
