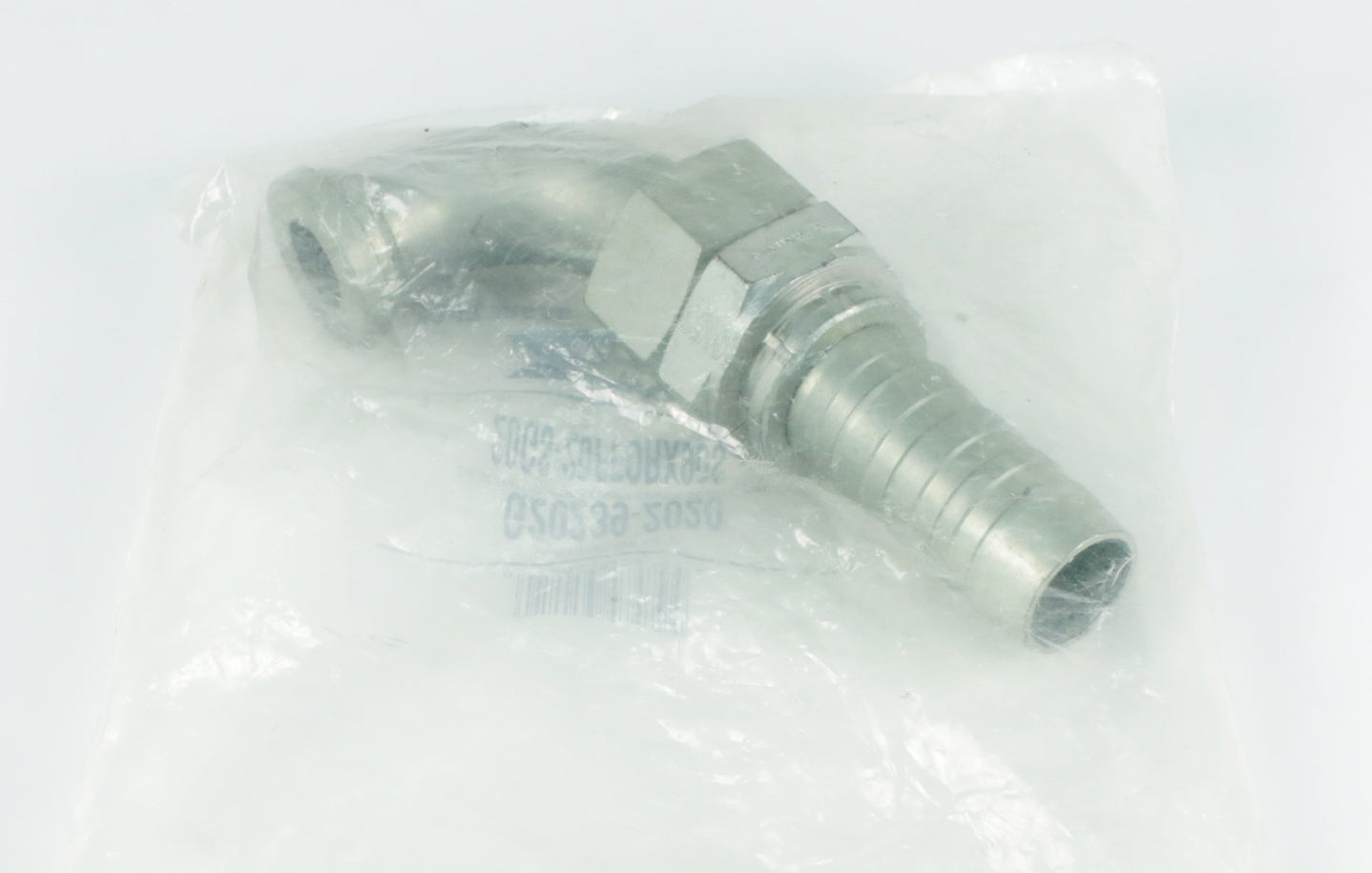

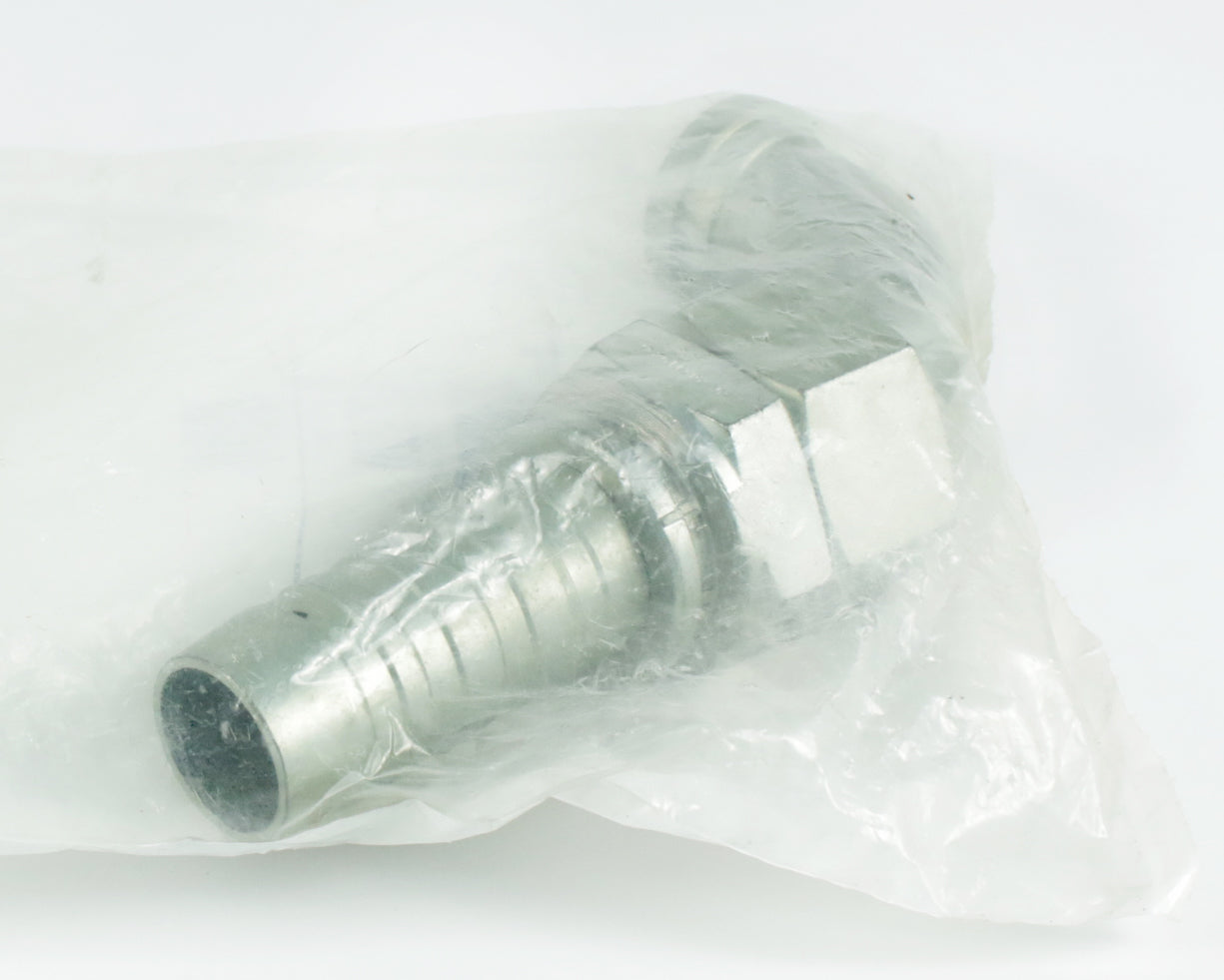

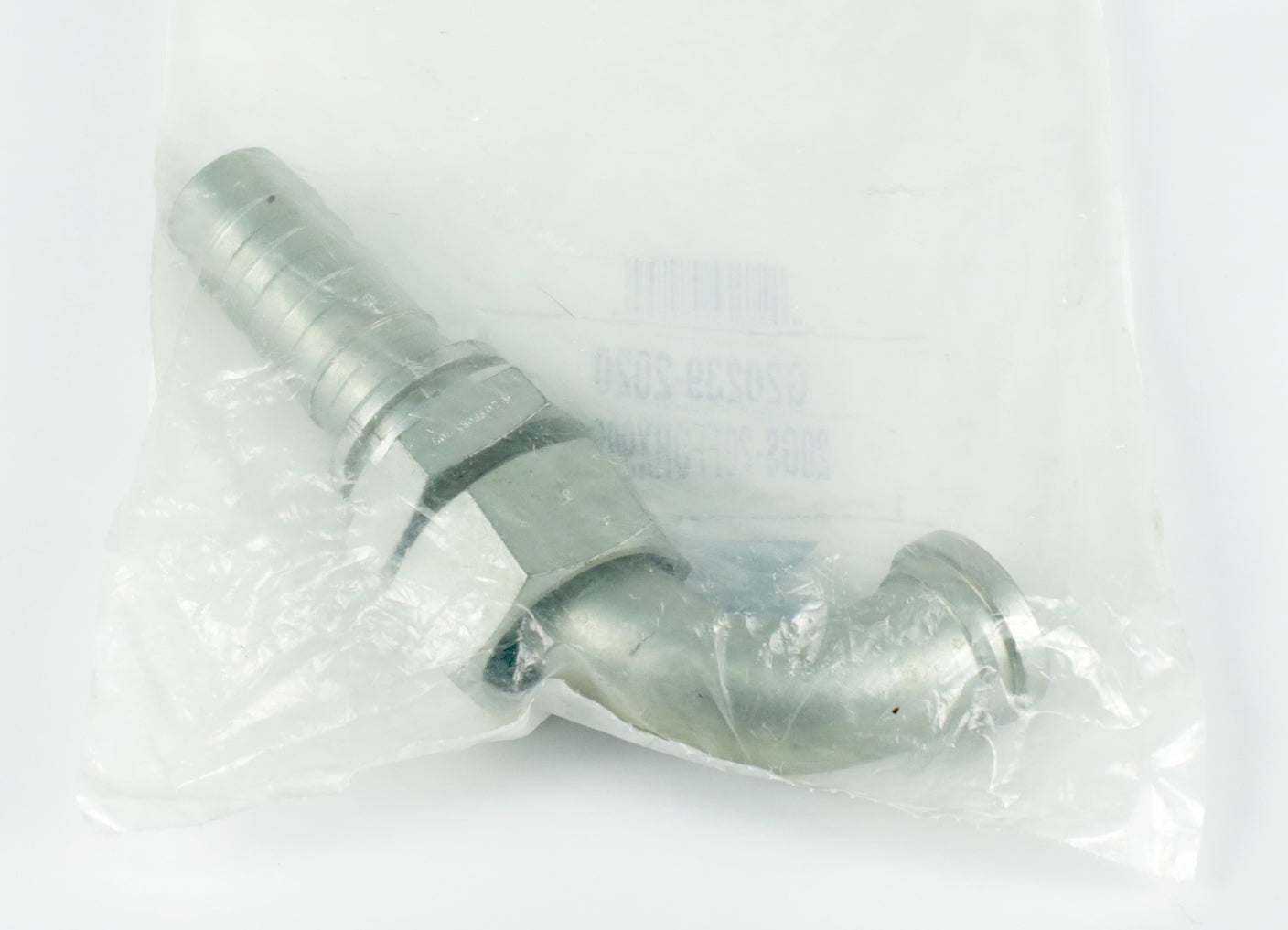

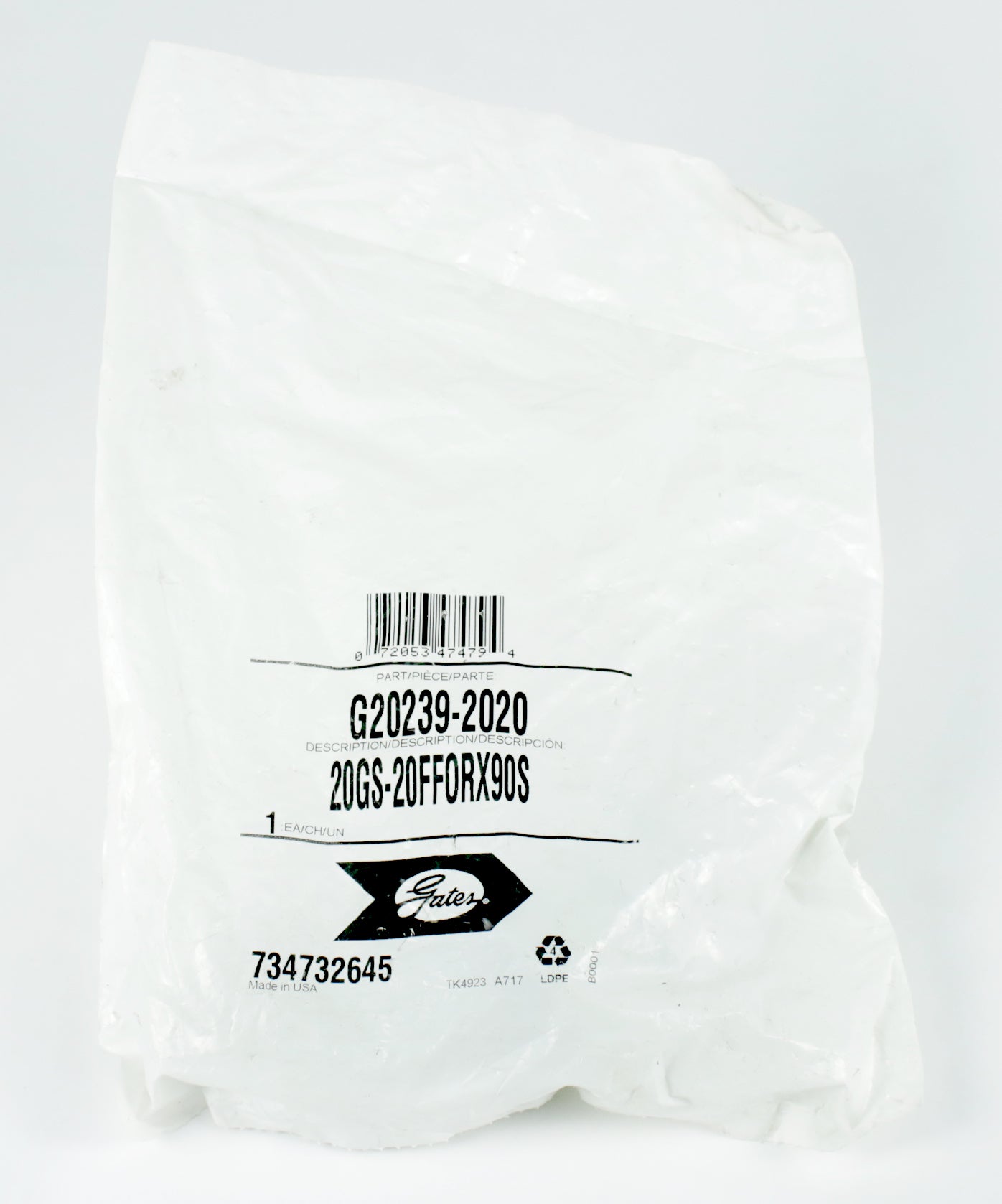

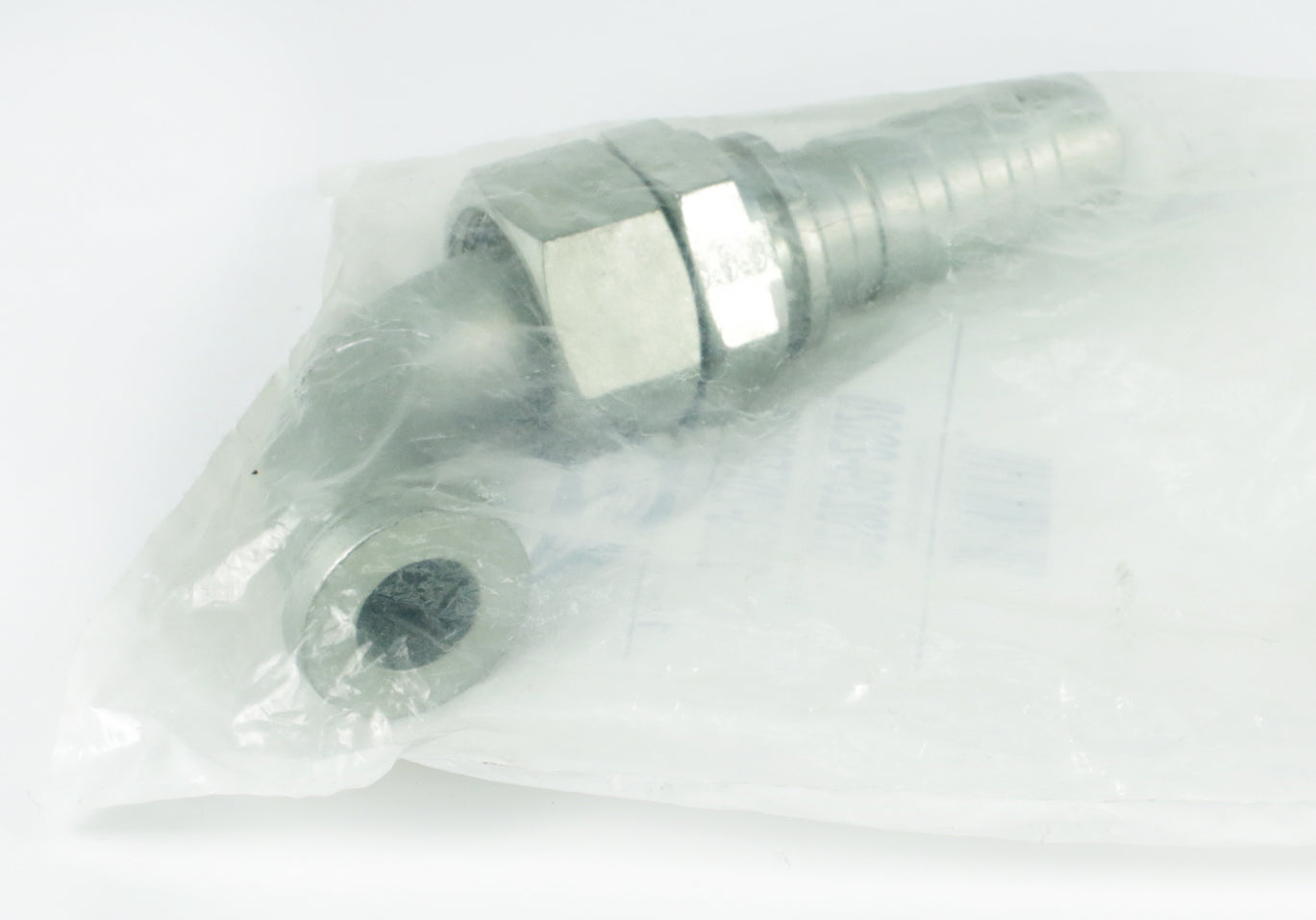

Gates Female Flat-Face O-Ring Swivel 1-1/4 Inch ID 1-11/16-12 Thread G20239-2020

Gates GlobalSpiral Plus Female Flat-Face O-Ring Swivel 1 11/16-12 Thread Size // 90° Bent Tube // 1-1/4" Inside Diameter Hydraulic Coupling; GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSYS four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination off the fluid power system. Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal. MGS Couplings for use with MC4-20 Crimper Only. Features: "Bite-the-wire" crimp for improved coupling retention Tested to an industry-leading 1,000,000 impulse cycles +250 Degree Fahrenheit temperature capability for longer assembly life Environmentally-friendly Tuffcoat plating for 347 percent better corrosion resistance than the SAE Standard Specifications: Thread Size: 1.6875-12 Inch Length (in): 6-3/4 Inch Length (mm): 172mm Hose Inside Diameter (in): 1-1/4 Inch Drop (in): 2-1/2 Inch Drop (mm): 64mm Hose Inside Diameter (mm): 32mm Cut Off (in): 4 Inch Cut Off (mm): 100.9mm Nut Hex (mm): 50mm Application: All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi - Brand New Item - Part Number: G20239-2020 90 Day Warranty Included! ----------------------------------------------------- 1 Factory Radio is proud to introduce our line of liquidation listings! These are new items that are priced to move. Any cosmetic blemishes are noted in the condition field so please keep that in mind when purchasing. All items are guaranteed to be in 100% working order with our standard 30 day return and 90 day warranty so you’ll still be covered by our top-notch customer service. We’ll be adding new listings to this line every day at limited quantities so be sure to bookmark and keep watch for more great deals! ----------------------------------------------------- This is a Gates GlobalSpiral 1-1/4 Inch (32mm) Hydraulic Coupling. This item is in NEW condition, with all items included unless otherwise listed. Please see photos for details. As you can see from our reviews, we package and ship everything very carefully. If you have any questions about any item listed, please do not hesitate to reach out. Thank You for Your Purchase!
