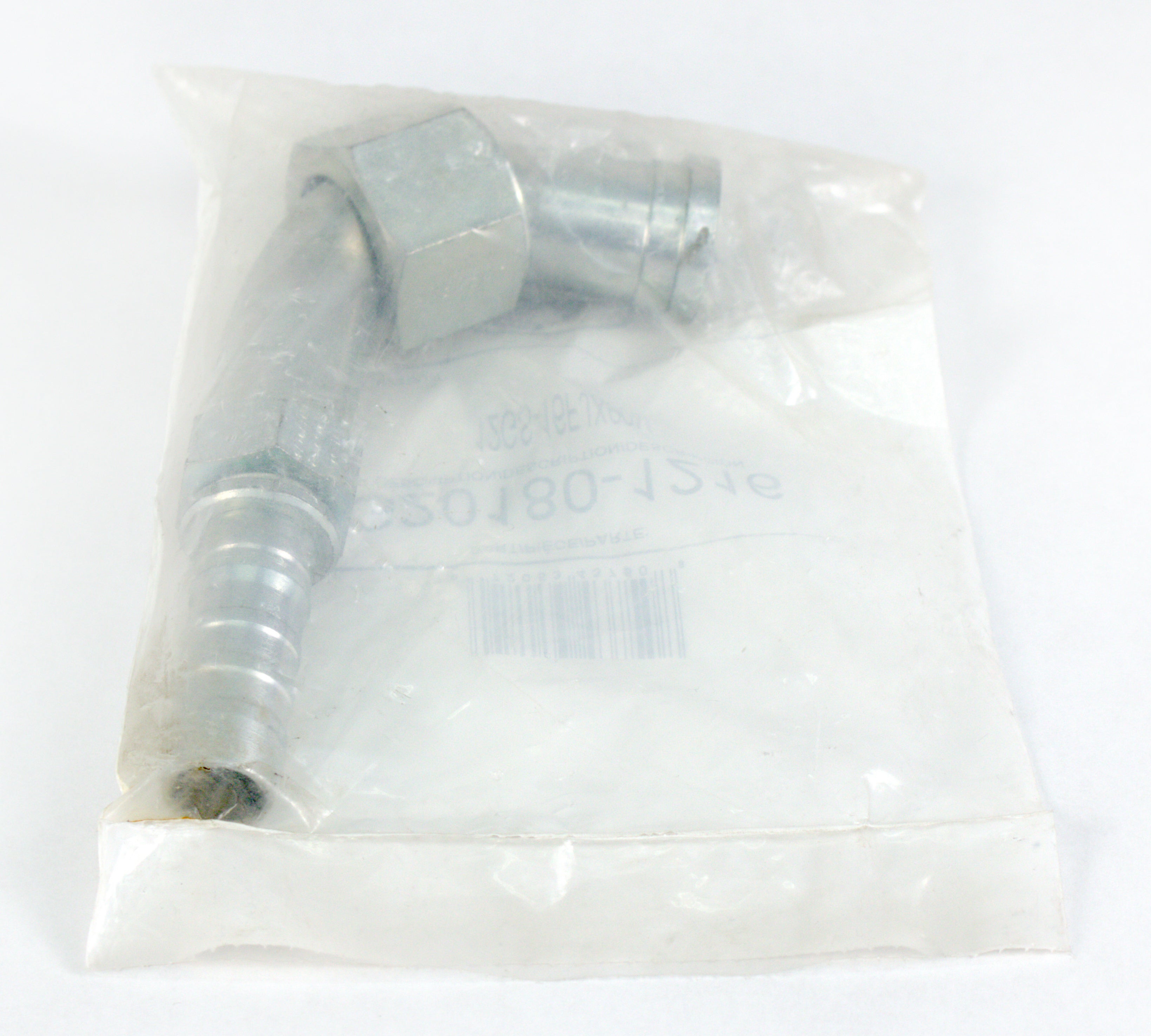

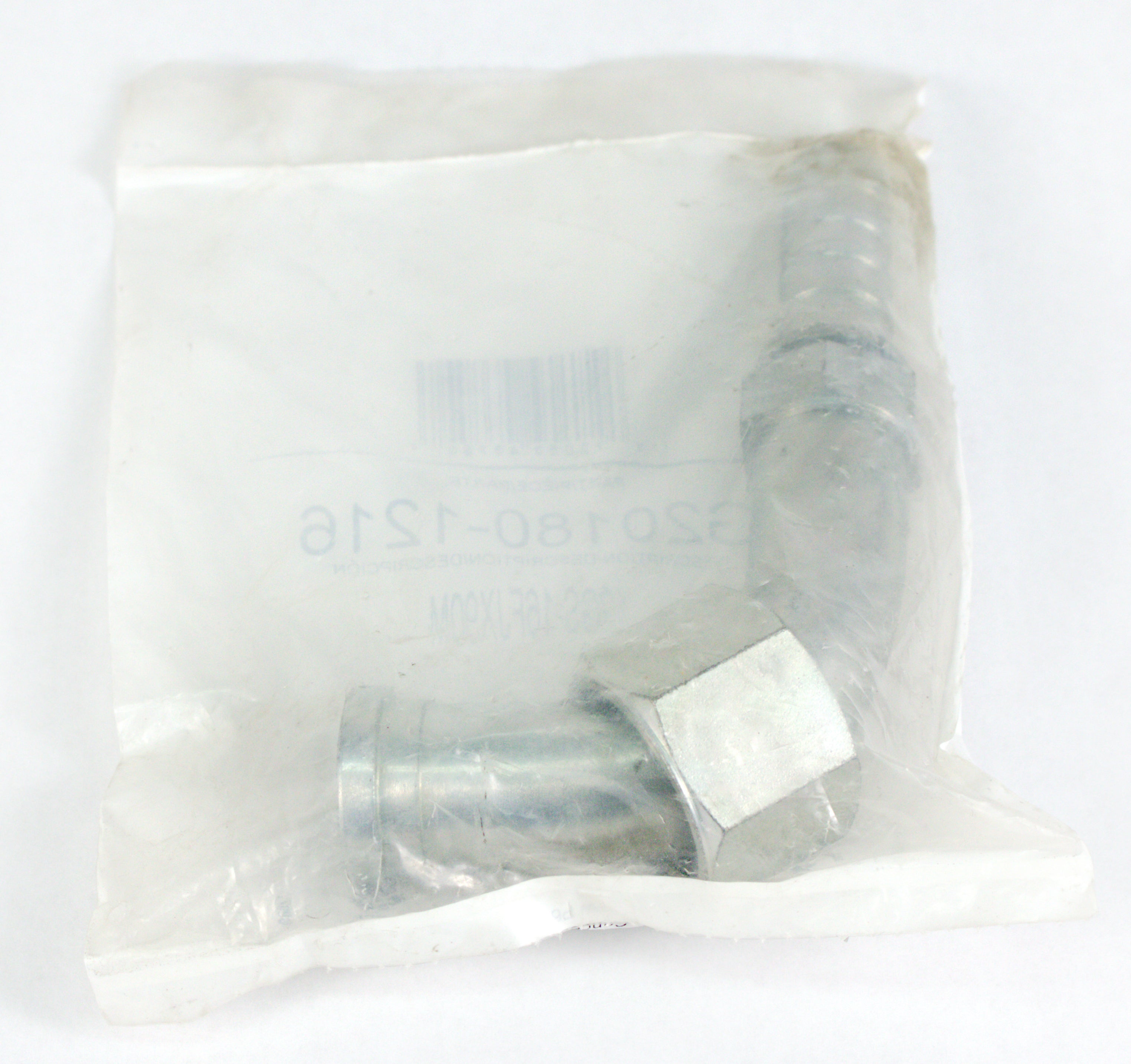

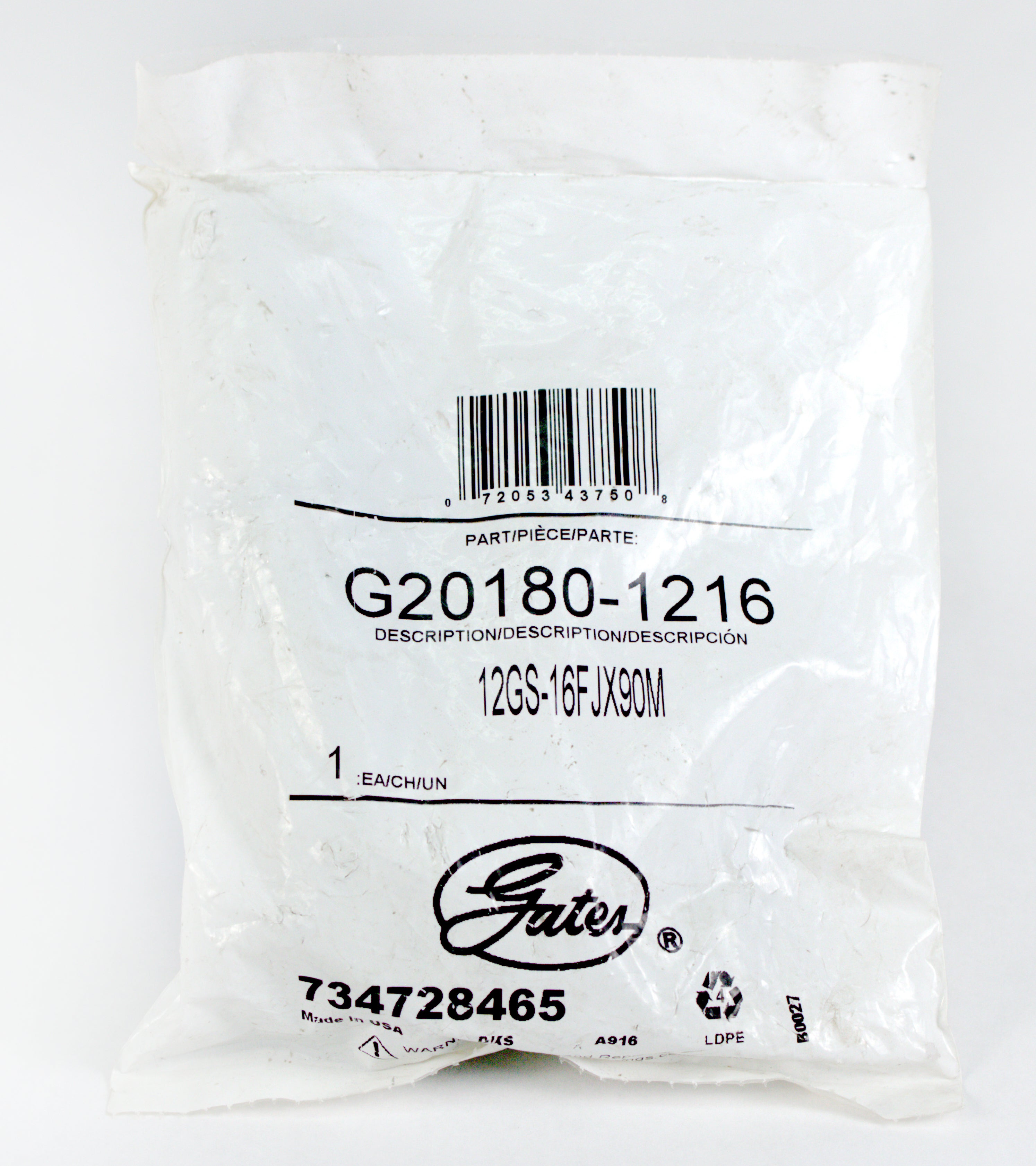

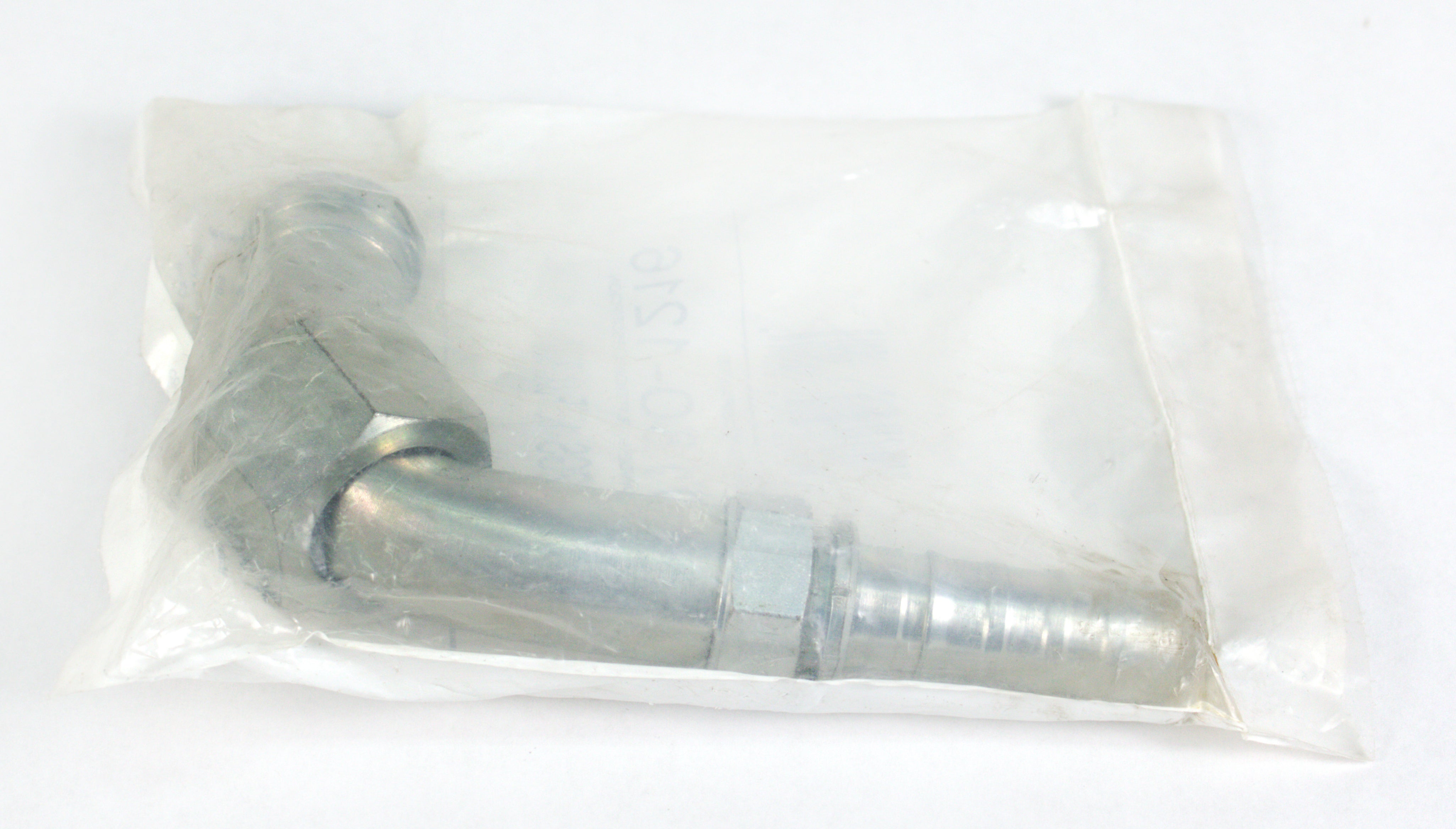

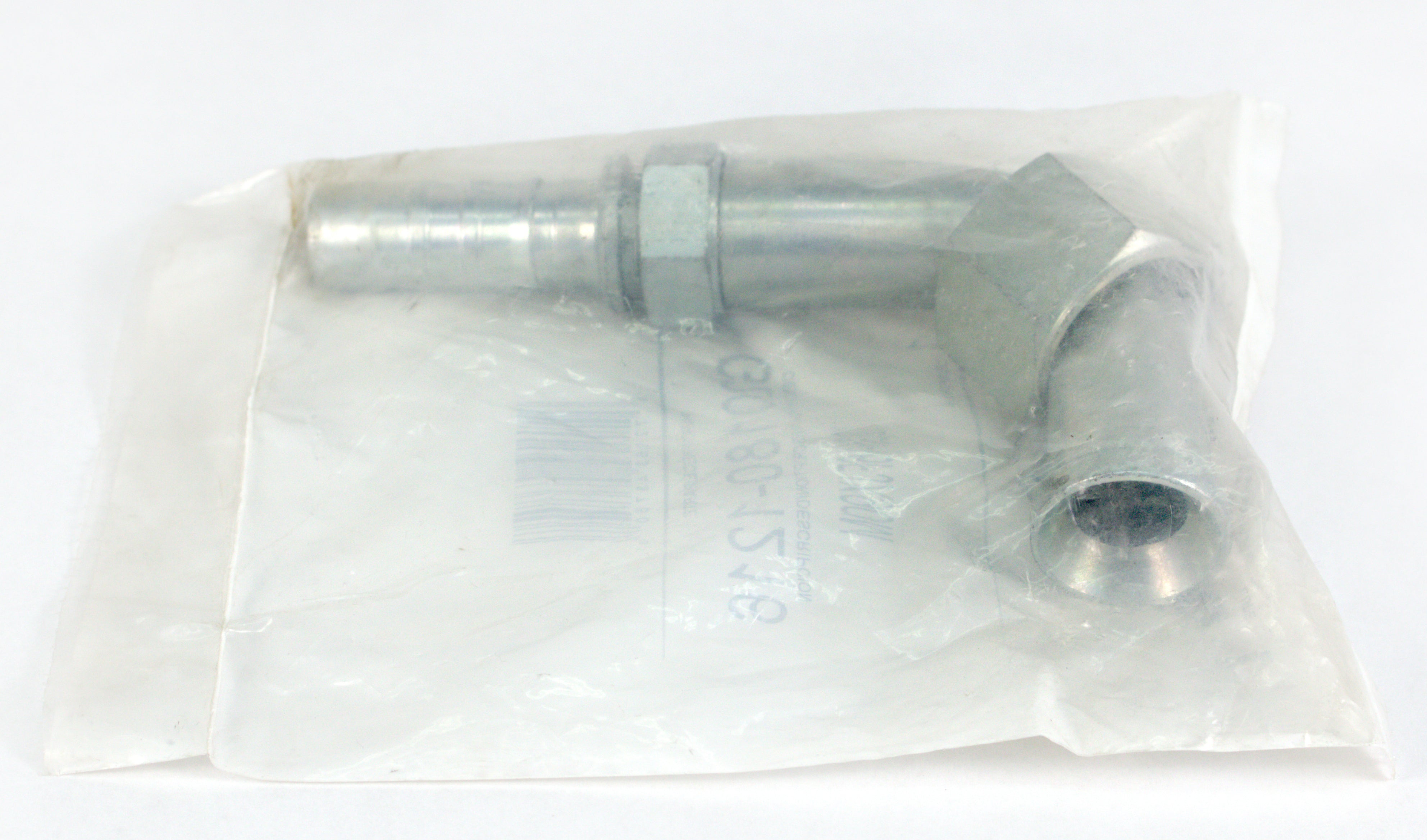

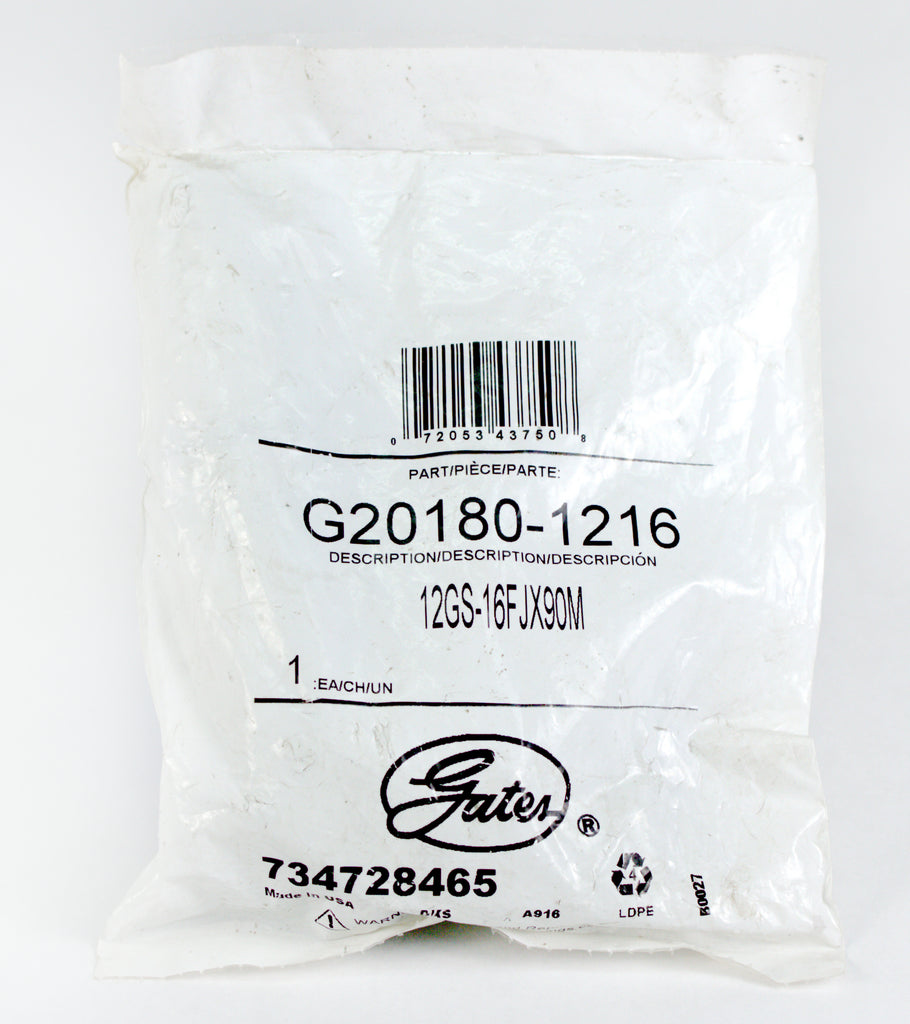

Gates GlobalSpiral Hydraulic Female JIC 37 Flare Swivel 90 Bent Tube G20180-1216

Gates GlobalSpiral Female JIC 37 Deg Flare Swivel 90 Deg Bent Tube Gates GlobalSpiral no-skive coupling design provides superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Features: Bite-the-wire crimp for improved coupling retention Tested to an industry-leading 1,000,000 impulse cycles Temperature Capacity +250 Deg. F, for Longer Assembly Life Environmentally friendly TuffCoat plating for corrosion resistance 347% better than SAE standard GlobalSpiral couplings have been tested to industry-leading one million impulse cycles at +250 Deg F (+121 Deg C) without causing stress cracks in the hose tubing. Machined from unleaded steel bar stock, GlobalSpiral thread ends are able to handle working pressures up to 6,000 psi. Coated with TuffCoat plating - more than five times better corrosion resistance than SAE ASTMB117 specification. Specifications: UPC: 072053437508 Unit of Measure: Each Cut-Off Length: 3.31 in Drop Length: 2.8 in Hydraulic Hose Recommendation: All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi Inside Diameter: .75 in Length: 5.31 in Nut Hex Size: 1.5 in Thread Size: 1-5/16-12 Fitment: for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSYS four- and six-spiral wire hose up to 8,000 psi. - Brand New Item - Part Number: G20180-1216 90 Day Warranty Included! ----------------------------------------------------- 1 Factory Radio is proud to introduce our line of liquidation listings! These are new items that are priced to move. Any cosmetic blemishes are noted in the condition field so please keep that in mind when purchasing. All items are guaranteed to be in 100% working order with our standard 30 day return and 90 day warranty so you’ll still be covered by our top-notch customer service. We’ll be adding new listings to this line every day at limited quantities so be sure to bookmark and keep watch for more great deals! ----------------------------------------------------- This is a Gates GlobalSpiral Female JIC 37Deg Flare Swivel 90Deg Bent Tube. This item is in NEW condition, with all items included unless otherwise listed. Please see photos for details. As you can see from our reviews, we package and ship everything very carefully. If you have any questions about any item listed, please do not hesitate to reach out. Thank You for Your Purchase!
