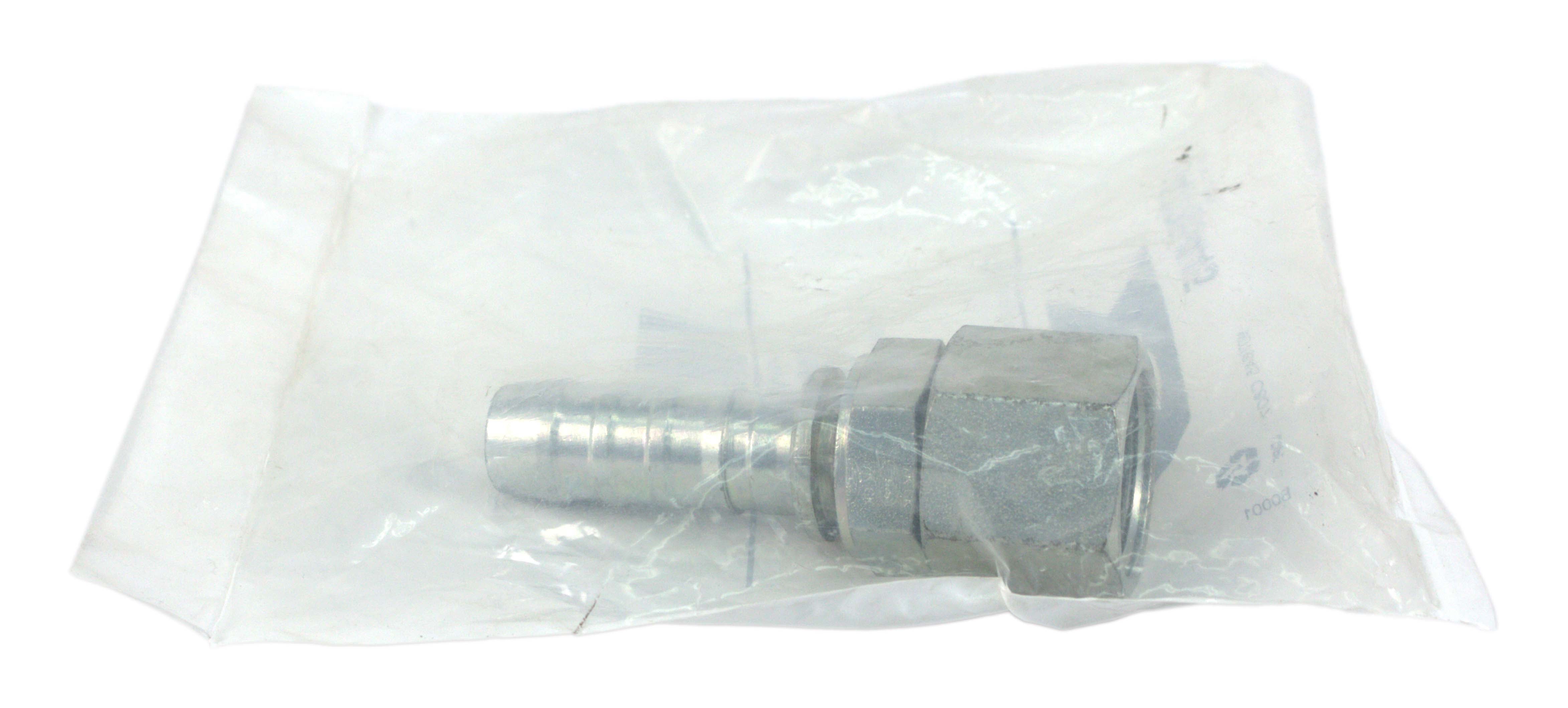

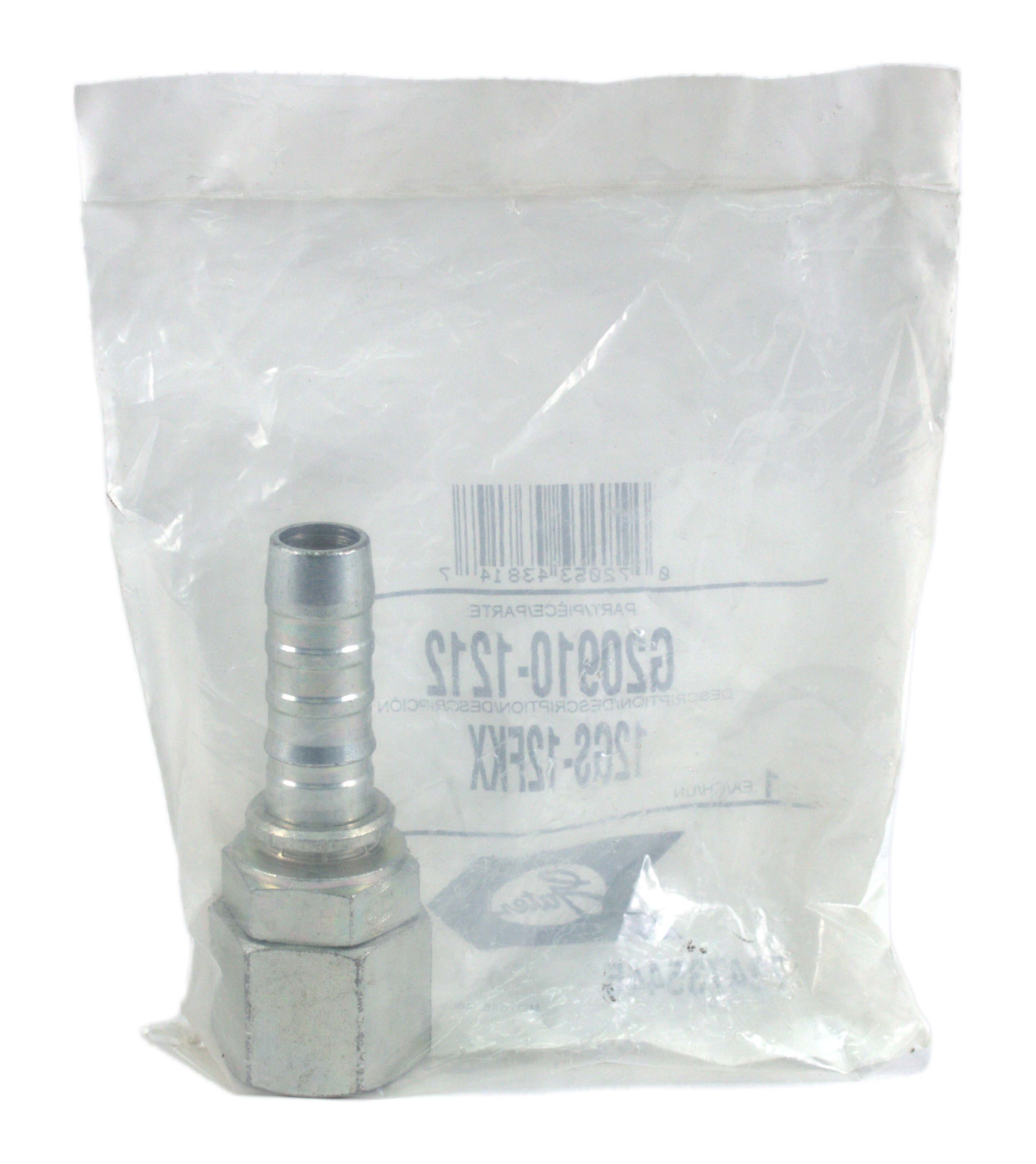

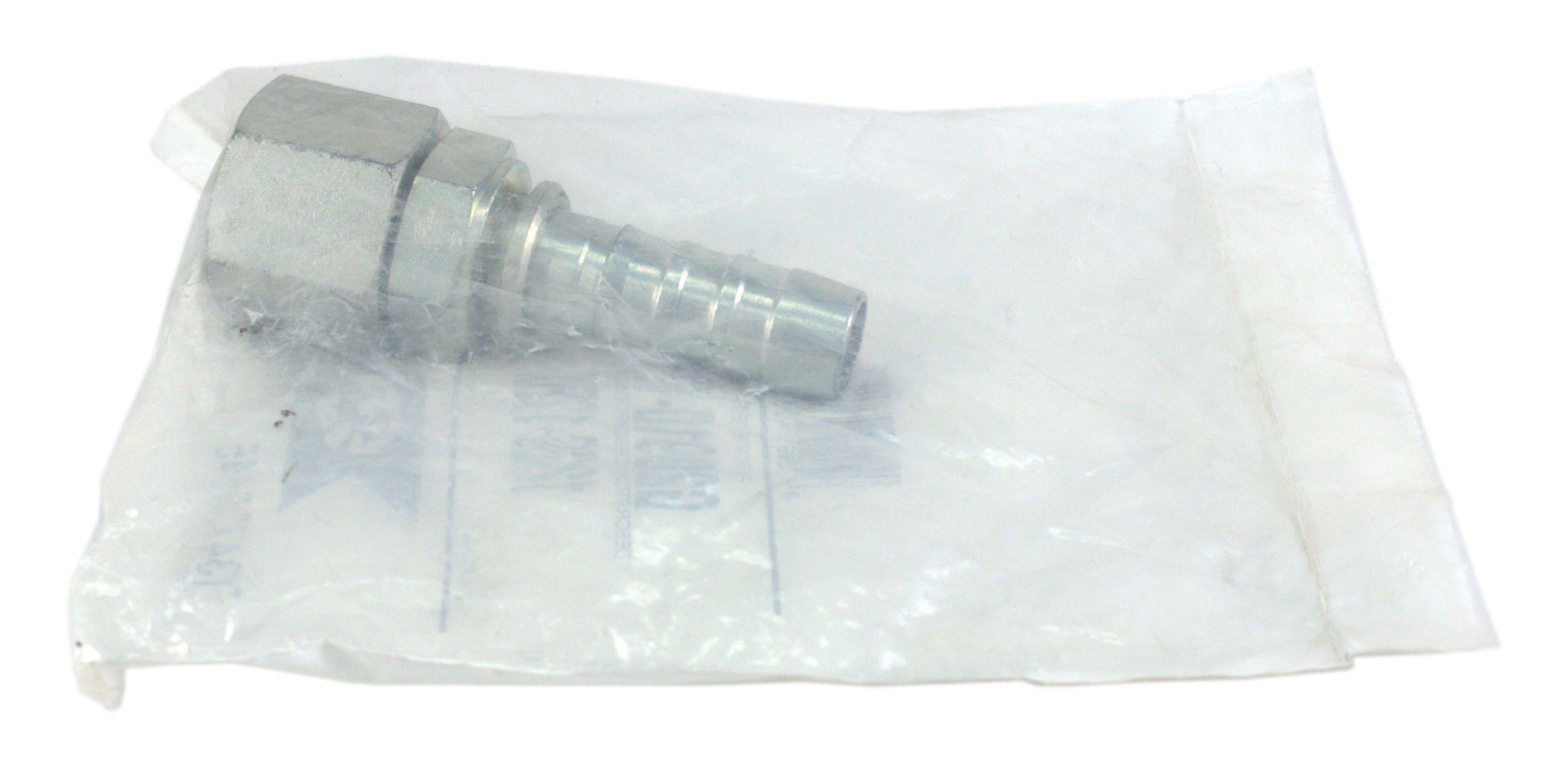

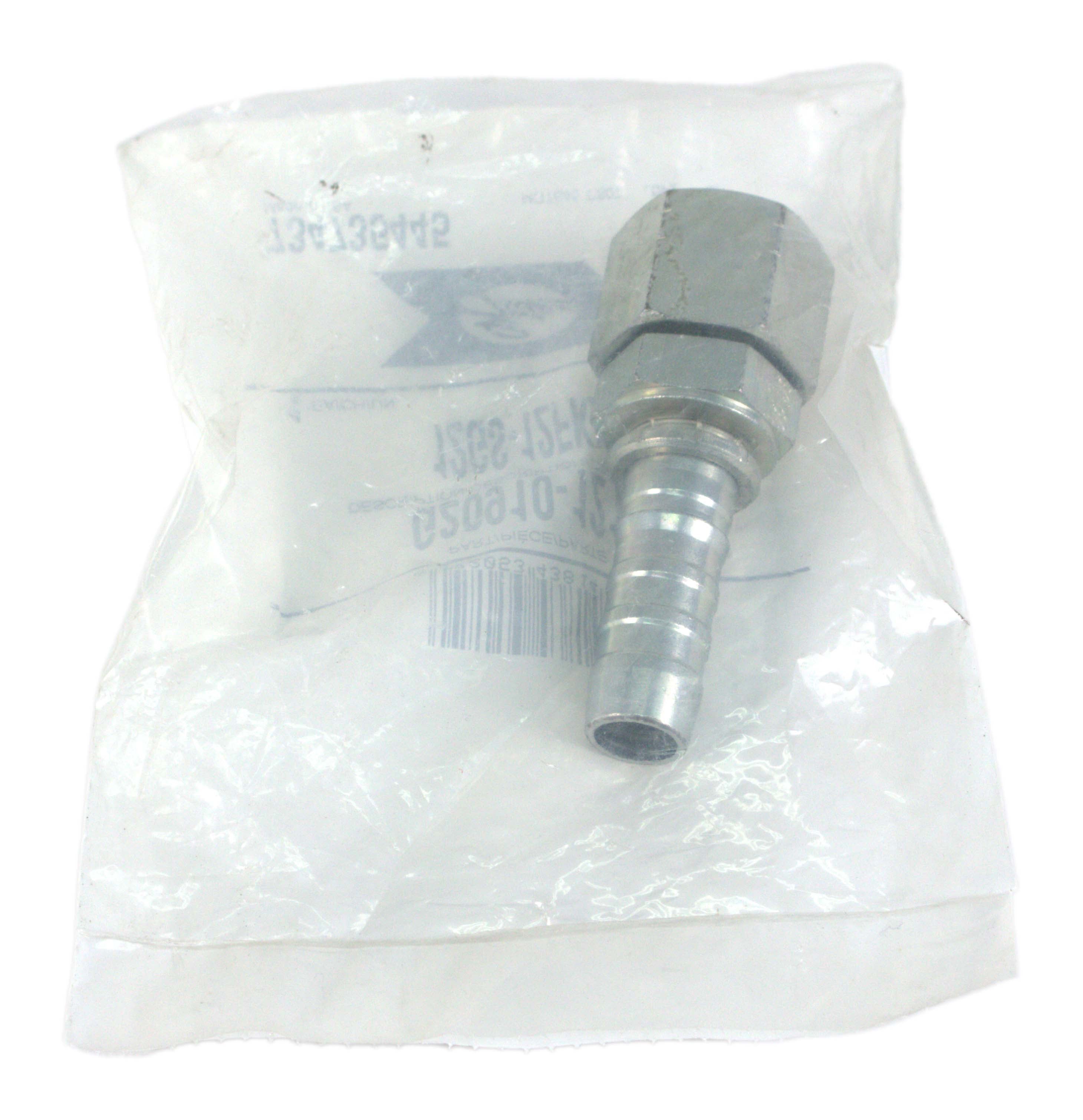

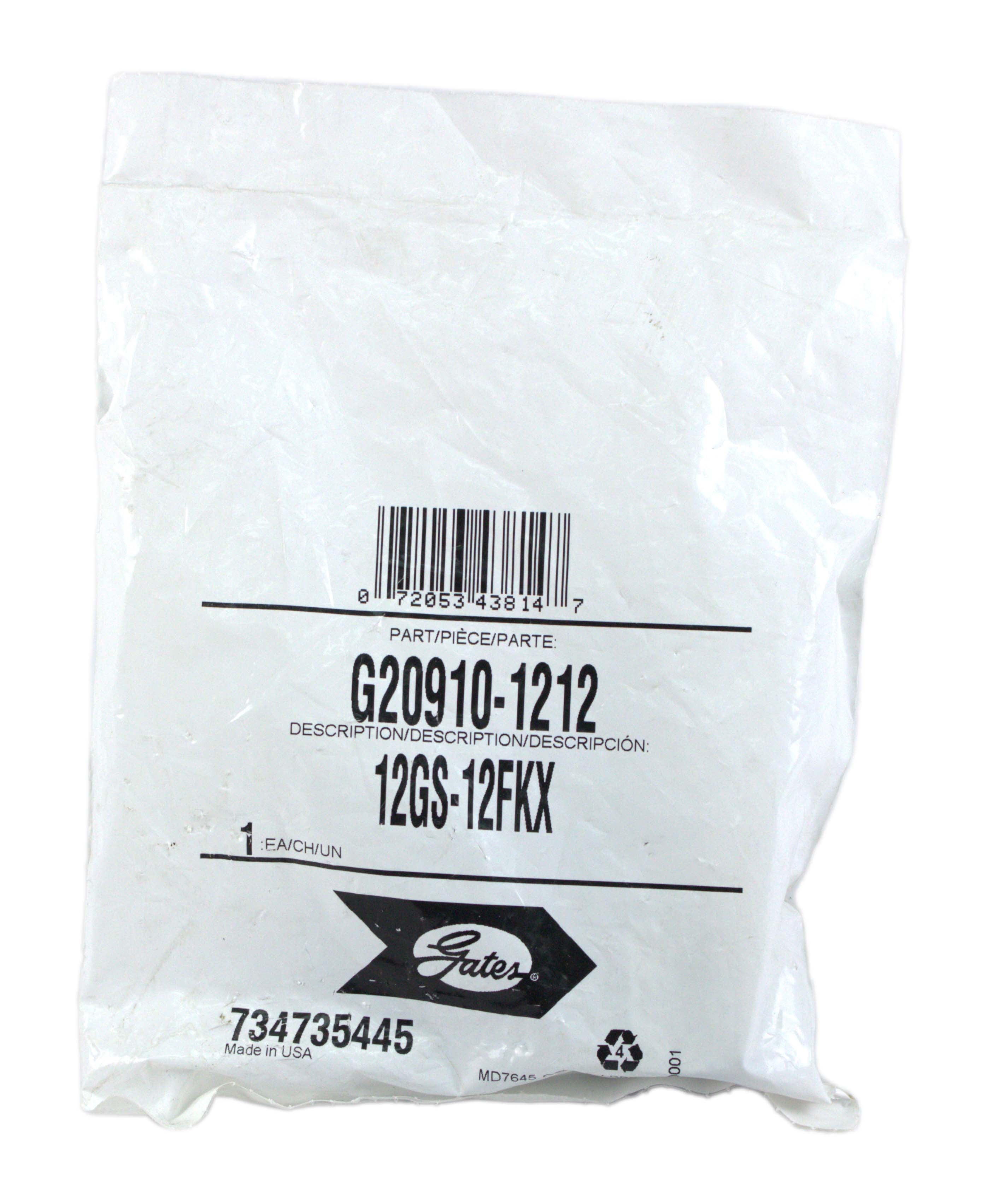

Gates GlobalSpiral 3/4 Inch Hydraulic Hose Coupling M30X1.5 Model ID G20910-1212

Gates GlobalSpiral 3/4 Inch Hydraulic Hose Coupling Gates GlobalSpiral no-skive coupling design provides superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Features: Bite-the-wire crimp for improved coupling retention Tested to an industry-leading 1,000,000 impulse cycles Temperature capability +250 F to prolong the life of the assembly. Eco-friendly TuffCoat plating for 347% higher corrosion resistance than SAE GlobalSpiral couplings have been tested to industry-leading one million impulse cycles at +250 Deg F (+121 Deg C) without causing stress cracks in the hose tubing. HeatGuard Hi-Temperature: -65 deg. F to +500 deg. F (-54 deg. C to +260 deg. C) for continuous exposure, up to 2000 Deg. F (1093 Deg. C) for 15-20 minutes and up to 3000 Deg. F (1650 Deg. C) for 15-30 seconds Coated with TuffCoat plating - more than five times better corrosion resistance than SAE ASTMB117 specification. Specifications: Coupling Description: GlobalSpiral Female Komatsu Style Japanese Metric Swivel Cut Off- C: 2 in Cut-Off Length: 2 in Hydraulic Hose Recommendation: All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi Inside Diameter: .75 in Length: 4 in Nut Hex Size: 36 mm Stem Hex Size: 32 mm Thread Size: M30X1.5 Fitment: For extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. - Brand New Item - Part Number: G20910-1212 90 Day Warranty Included! ----------------------------------------------------- 1 Factory Radio is proud to introduce our line of liquidation listings! These are new items that are priced to move. Any cosmetic blemishes are noted in the condition field so please keep that in mind when purchasing. All items are guaranteed to be in 100% working order with our standard 30 day return and 90 day warranty so you’ll still be covered by our top-notch customer service. We’ll be adding new listings to this line every day at limited quantities so be sure to bookmark and keep watch for more great deals! ----------------------------------------------------- This is a Gates GlobalSpiral 3/4 Inch Hydraulic Hose Coupling. This item is in NEW condition, with all items included unless otherwise listed. Please see photos for details. As you can see from our reviews, we package and ship everything very carefully. If you have any questions about any item listed, please do not hesitate to reach out. Thank You for Your Purchase!
