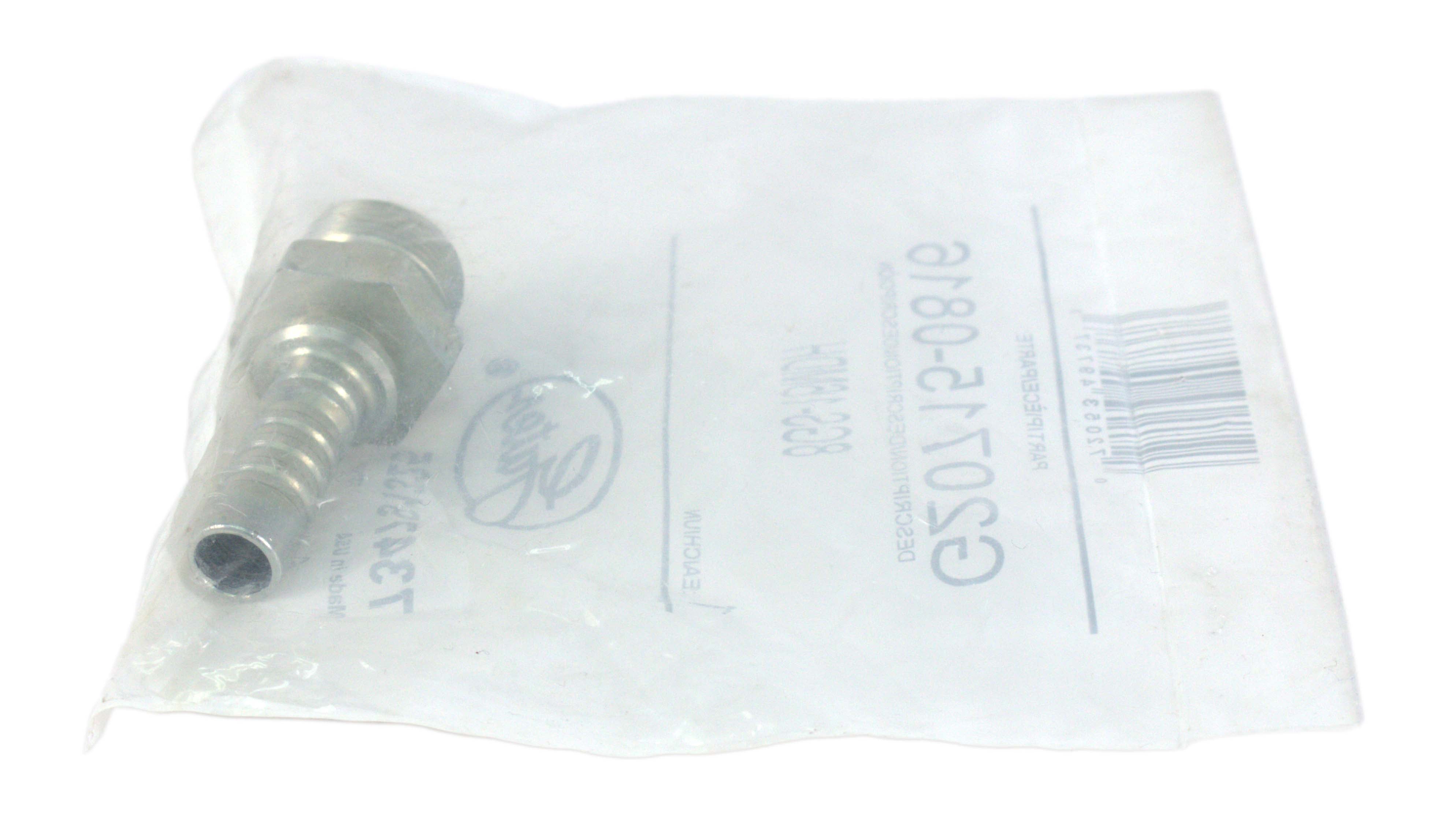

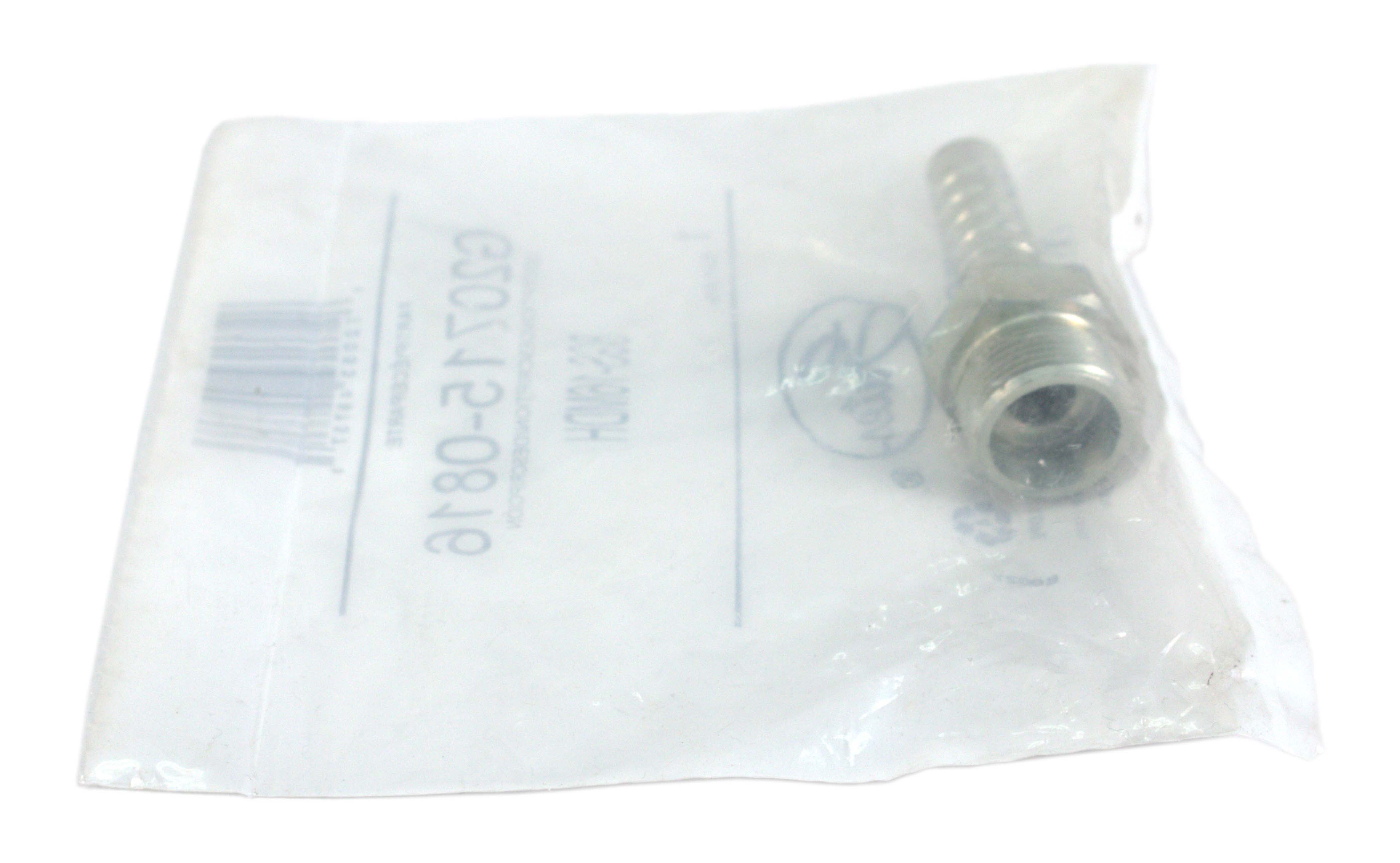

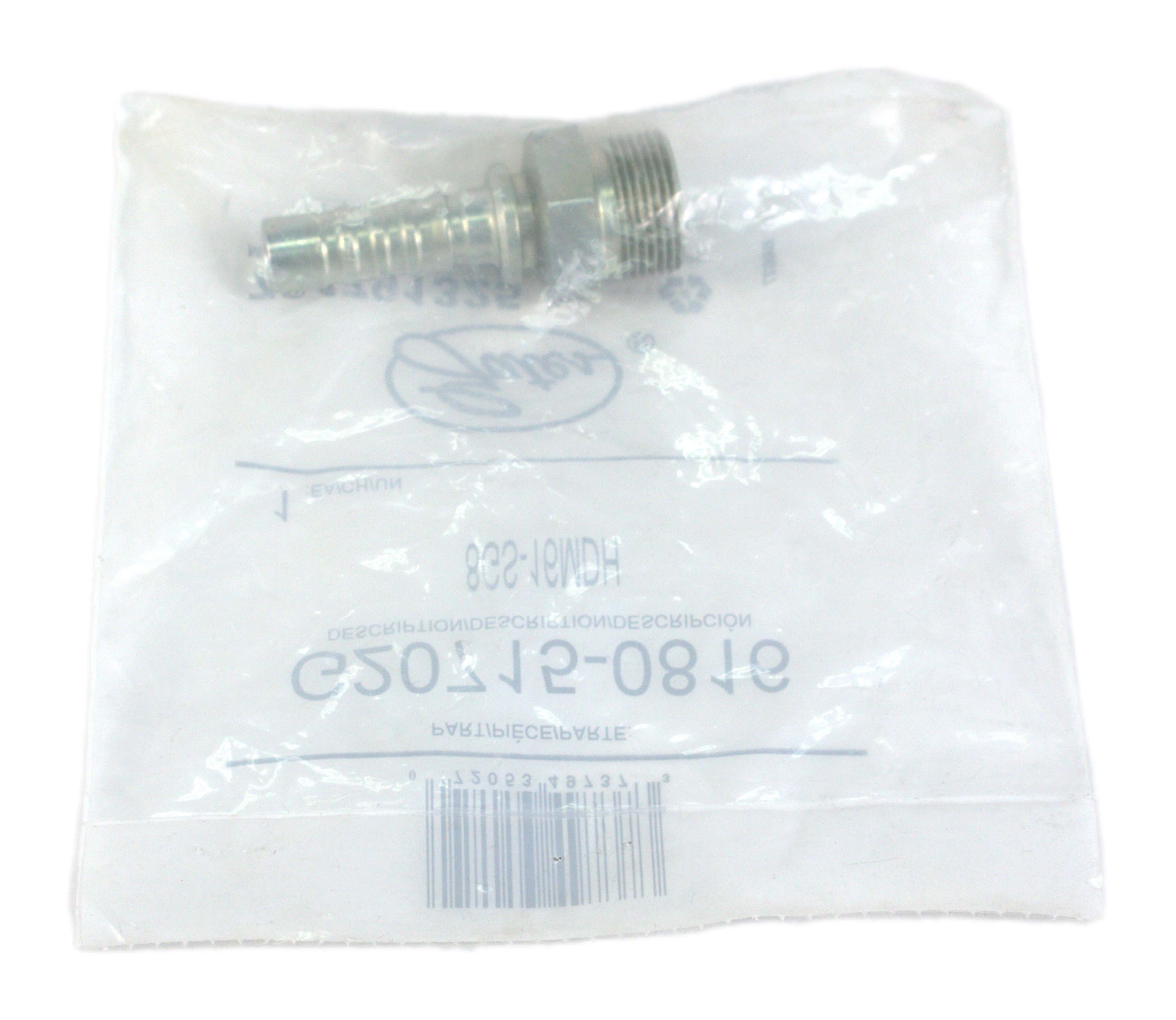

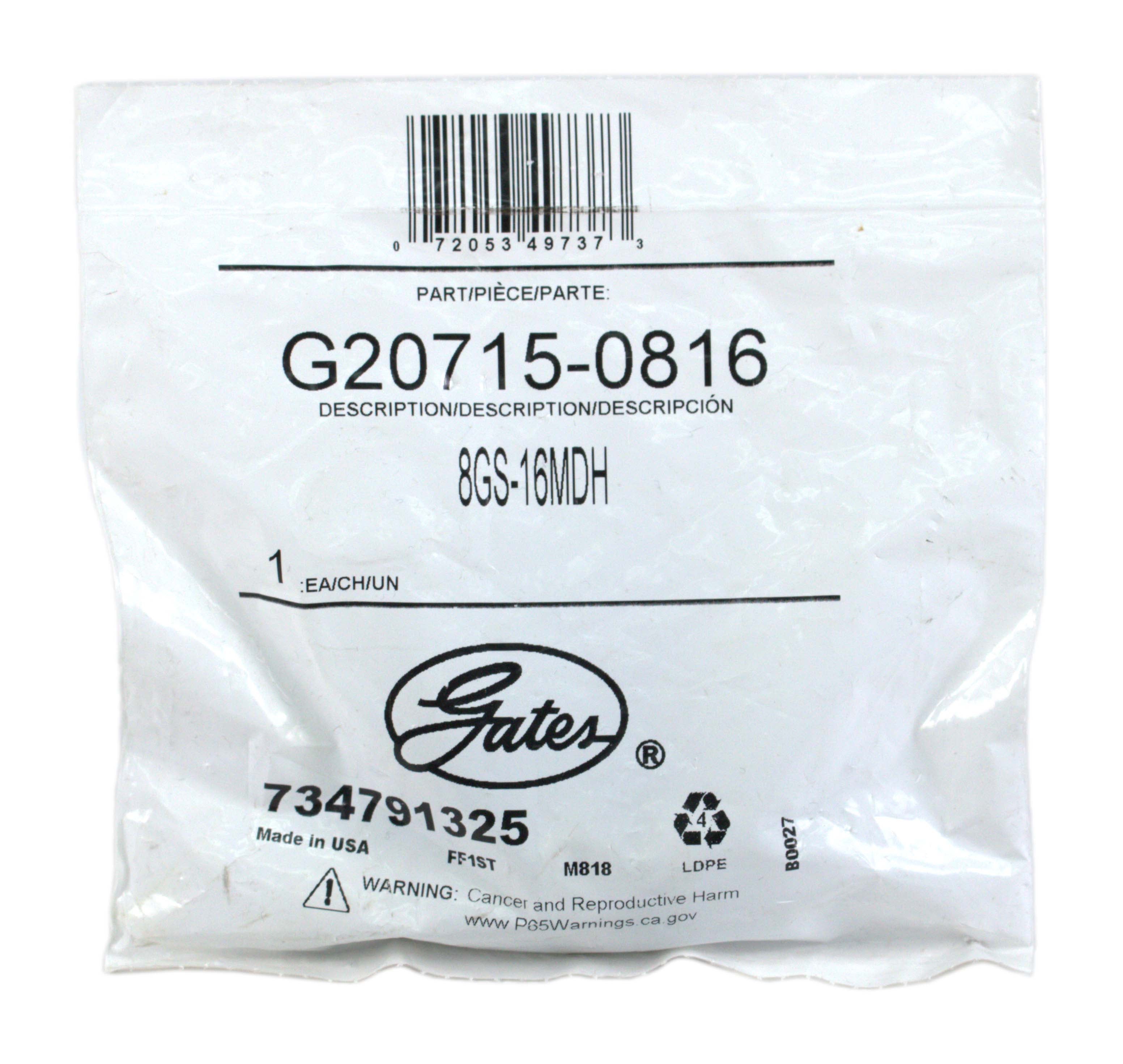

Gates 1/2" Hydraulic Coupling Male DIN 24 Cone Swivel O-Ring M24X1.5 G20715-0816

Gates 1/2in Hydraulic Coupling Male DIN 24 Cone Swivel w/O-Ring Hydraulic Coupling; Male; DIN 24 Cone Swivel; Heavy Series With O-Ring (GlobalSpiral); GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSYS four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. Nut Hex per ISO Draft International Standards 12151-2. MGS Couplings for use with MC4-20 Crimper Only. Features: "Bite-the-wire" crimp for improved coupling retention Tested to an industry-leading 1,000,000 impulse cycles +250 Degree Fahrenheit temperature capability for longer assembly life Environmentally-friendly Tuffcoat plating for 347 percent better corrosion resistance than the SAE Standard Specifications: UPC: 072053497373 Unit of Measure: Each Coupling Description: GlobalSpiral Male DIN 24 Cone - Heavy Series Industrial Description: 8GS-16MDH Thread Size: M24X1.5 Inside Diameter: .5 IN Hydraulic Hose Recommendation: All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi Outside Diameter: 16 MM Stem Hex Size: 27 MM Cut-Off Length: 1.18 IN Length: 1.17 IN Inside Diameter: 12.7 MM Cut-Off Length: 30 MM Length: 29.7 MM Part Interchanges: Dayco 101811 NAPA G20715-0816 California Proposition 65 Warning California residents see Prop 65 Warning(s) For extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. - Brand New Item - Part Number: G20715-0816 90 Day Warranty Included! ----------------------------------------------------- 1 Factory Radio is proud to introduce our line of liquidation listings! These are new items that are priced to move. Any cosmetic blemishes are noted in the condition field so please keep that in mind when purchasing. All items are guaranteed to be in 100% working order with our standard 30 day return and 90 day warranty so you’ll still be covered by our top-notch customer service. We’ll be adding new listings to this line every day at limited quantities so be sure to bookmark and keep watch for more great deals! ----------------------------------------------------- This is a Gates 1/2in Hydraulic Coupling Male DIN 24 Cone Swivel w/O-Ring. This item is in NEW condition, with all items included unless otherwise listed. Please see photos for details. As you can see from our reviews, we package and ship everything very carefully. If you have any questions about any item listed, please do not hesitate to reach out. Thank You for Your Purchase!
