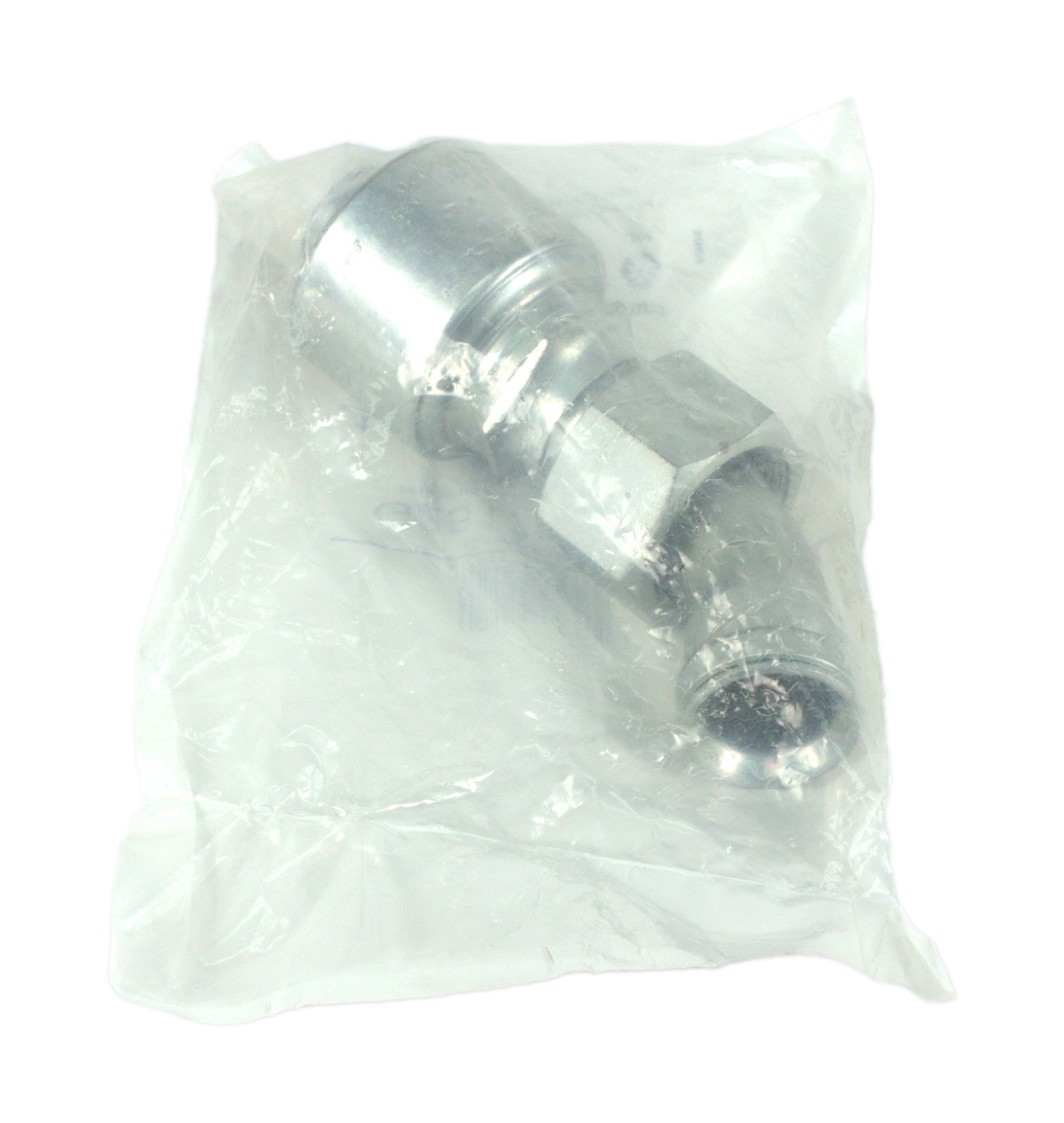

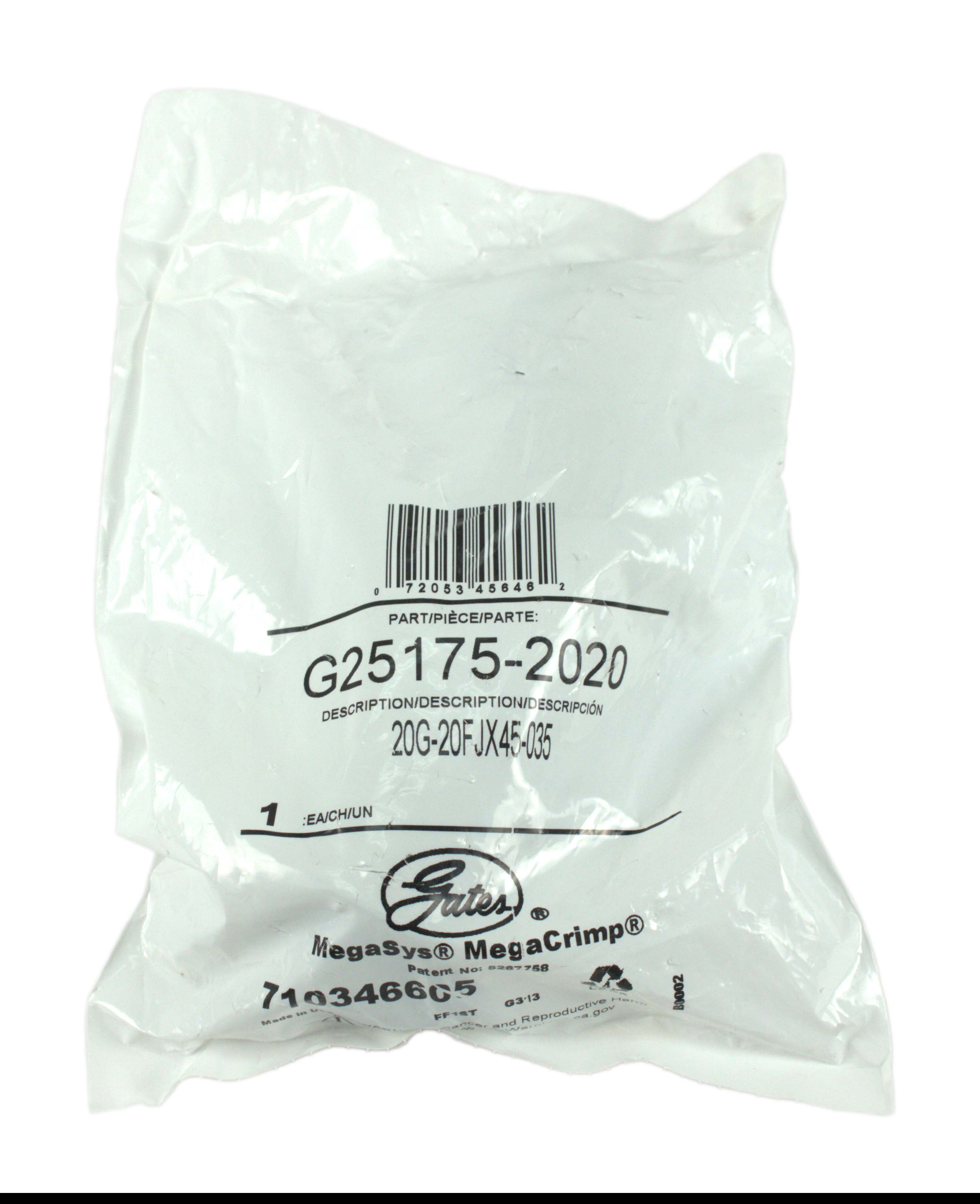

Gates Female JIC 37 Flare Swivel 45° 1 5/8-12 Thread 1.25in ID Model G25175-2020

Gates MegaCrimp Female JIC 37 Flare Swivel 45° Bent, 1 5/8-12 Thread Size, 1.25" Inside Diameter Gates Female JIC 37 Flare Swivel - 45° Bent Tube (MegaCrimp) Features: Robust “bite-the-wire” crimp Tested to an industry-leading 1 million impulse cycles Simplifies inventory management Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard Specifications: Coupling Description: MegaCrimp Female JIC 37 Flare Swivel - 45 Bent Tube Industrial Description: 20G-20FJX45-035 Thread Size: 1 5/8-12 Inside Diameter: 1.25 IN Hydraulic Hose Recommendation: Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose Nut Hex Size: 50 MM Drop Length: 1.38 IN Cut-Off Length: 4.33 IN Length: 6.65 IN Seal Type: Mated Angle Nose Seat Type: Standard Mating Angle: 37 Gender: Female Bent Tube Angle: 45 Swivel: Yes Inside Diameter: 31.8 MM Drop Length: 35 MM Cut-Off Length: 110 MM Length: 169 MM GATES G25175-2020 Cross References: Aeroquip 1AR20FJA20, 1AV20FJA20, 1GA20FJA20 Dayco 108587A Goodyear UC-JCFX45-2020 Kurt Hydraulics FJX45-20-20 NAPA G25175-2020 Parker 13743-20-20, 137HY-20-20 Weatherhead 20Z697 Fitment: Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose - Brand New Item - Part Number: G25175-2020 90 Day Warranty Included! ----------------------------------------------------- 1 Factory Radio is proud to introduce our line of liquidation listings! These are new items that are priced to move. Any cosmetic blemishes are noted in the condition field so please keep that in mind when purchasing. All items are guaranteed to be in 100% working order with our standard 30 day return and 90 day warranty so you’ll still be covered by our top-notch customer service. We’ll be adding new listings to this line every day at limited quantities so be sure to bookmark and keep watch for more great deals! ----------------------------------------------------- This is a Gates MegaCrimp Female JIC 37 Flare Swivel - 45° Bent Tube, 1 5/8-12 Thread Size, & 1.25in ID. This item is in NEW condition, with all items included unless otherwise listed. Please see photos for details. As you can see from our reviews, we package and ship everything very carefully. If you have any questions about any item listed, please do not hesitate to reach out. Thank You for Your Purchase!
